2014 JSW J850ADW-3100H

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
JSW
Model:
J850ADW-3100H
Year:
2014
Status:
For Sale
Clamping Force Tonnage850 T771.108 t
Shot Volume (PS)117.2 oz3,323.7 g
Screw Diameter3.937"100 mm
Maximum Injection Pressure22625 psi
Maximum Holding Pressure20305 psi
Screw Torque High Speed165165
Tie Bar Distance H51.97"1,320 mm
Tie Bar Distance V51.97"1,320 mm
Platen Dimension H74.8"1,899.9 mm
Platen Dimension V70.87"1,800.1 mm
Clamp Stroke47.24"1,199.9 mm
Maximum Daylight90.55"2,300 mm
Mold Height Min19.69"500.13 mm
Mold Height Max43.31"1,100.1 mm
Ejector Stroke7.87"199.9 mm
Power supply Volts230230
Machine under powerUnder power running with mouldUnder power running with mould
ControlCNC (SYSCOM 3000)CNC (SYSCOM 3000)
Dimensions36. ft X 11.81 ft X 8.99 ft36. ft X 11.81 ft X 8.99 ft
Weight119050 lbs119050 lbs

Barrel code: N-Aloy N2000F
Screw type: LSP-2,M3
Hot runner manifold Zones: 8
Hot runner Nozle zones: 4
Hydraulic Valve Gate : 4
Fixed Side Hydraulic Corepulls: 1
Moving Side Hydra ulic Corepulls: 1

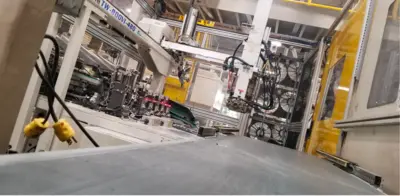

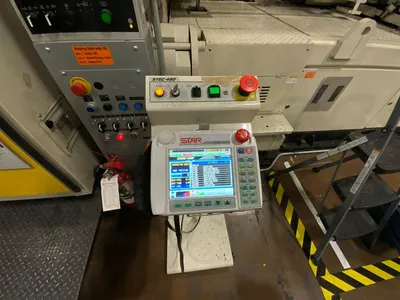

2014 Star Robot TW-1800VI-480
2014 Star Robot TW-800VI-480
