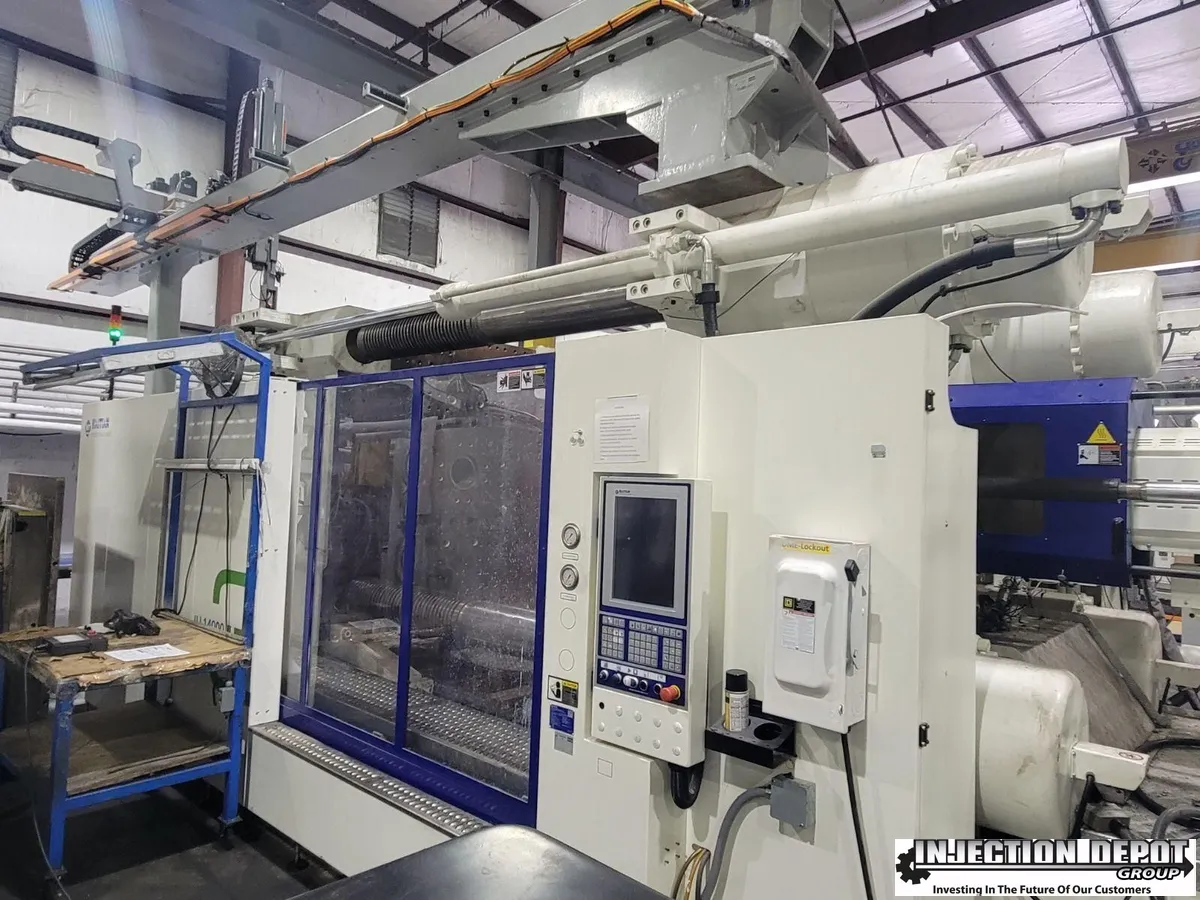

2020 Haitian JU14000III 1500-Ton Injection Molding Machine # 207
Have one to sell?
ConditionUsed
1 available
2 COREPULL
3 V GATES
ARI ROBOT included
3 PC ASSY SCREW TIP
Imperial
| Type | Servo Hydraulic |
| Clamping Force Tonnage | 1,500 T |
| Barrel Code | B |
| Shot Volume (PS) | 199.7 oz |
| Screw Diameter | 4.72" |
| Screw Speed STD | 105 rpm |
| Injection Rate STD | 2.3 ft³/min. |
| Tie Bar Distance H | 57.48" |
| Tie Bar Distance V | 53.54" |
| Maximum Daylight | (W/O) spacer |
| Mold Height Min | 27.56" |
| Mold Height Max | 57.48" |
| Ejector Force | 37 T |
| Ejector Stroke | 15.7" |
| Injection Orientation | Horz |
| Hours | 8,856 hr. |
| Dimensions | 38.FT X11.8 FT X 14.5 FT |
| Weight | 136000 LBS |
2 COREPULL
3 V GATES
ARI ROBOT included
3 PC ASSY SCREW TIP
