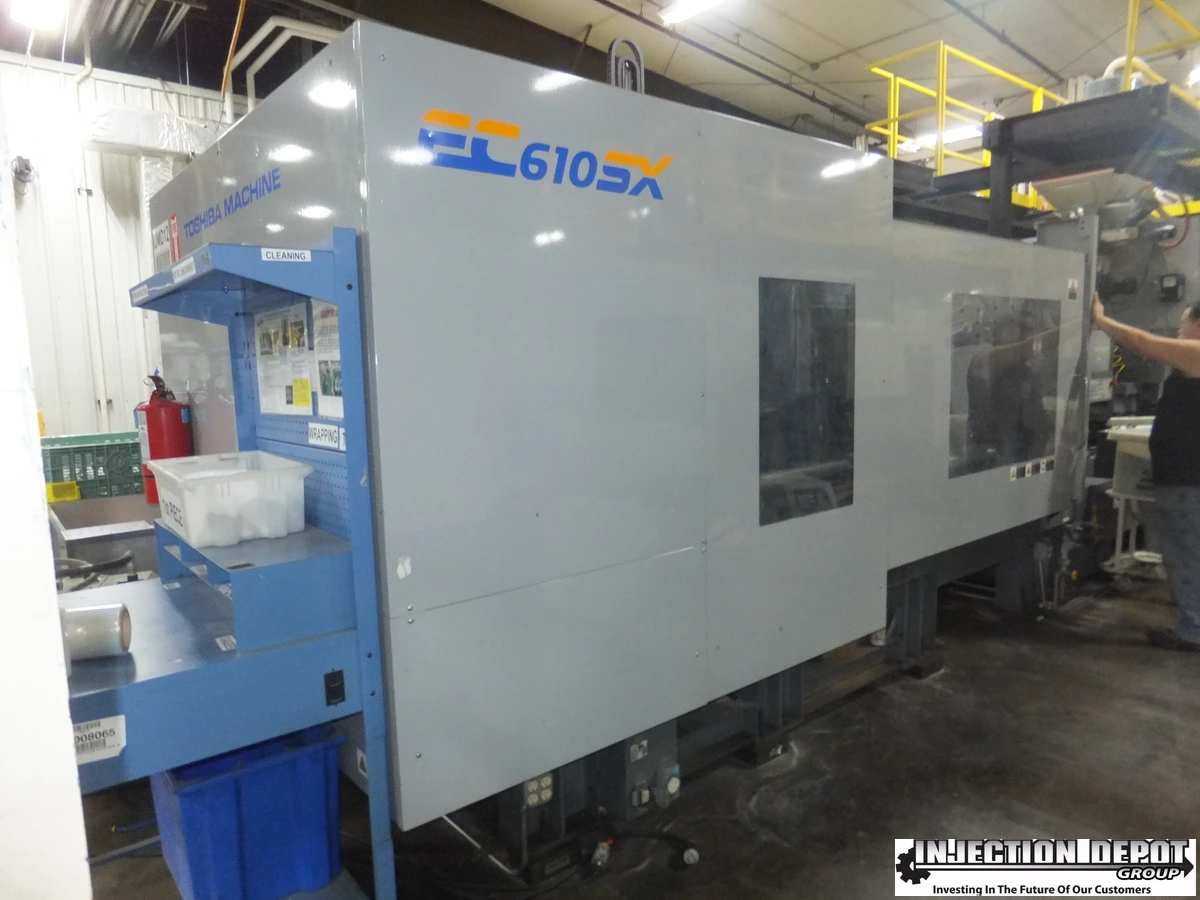

2013 Toshiba EC610SXV50-61B Injection Molding Machine
HORIZONTAL INJECTION MOULDING MACHINES
| Type | Hydraulic |
| Clamping Force Tonnage | 610 T |
| Shot Volume (PS) | 124 oz |
| Tie Bar Distance H | 960 mm |
| Tie Bar Distance V | 900 mm |
| Platen Dimension H | 1,365 mm |
| Platen Dimension V | 1,300 mm |
| Clamp Stroke | 900 mm |
| Maximum Daylight | 1,900 mm |
| Mold Height Min | 565 mm |
| Mold Height Max | 535 mm |
| Ejector Force | 13 T |
| Ejector Stroke | 180 mm |
| Hours | 56,273 hr. |
