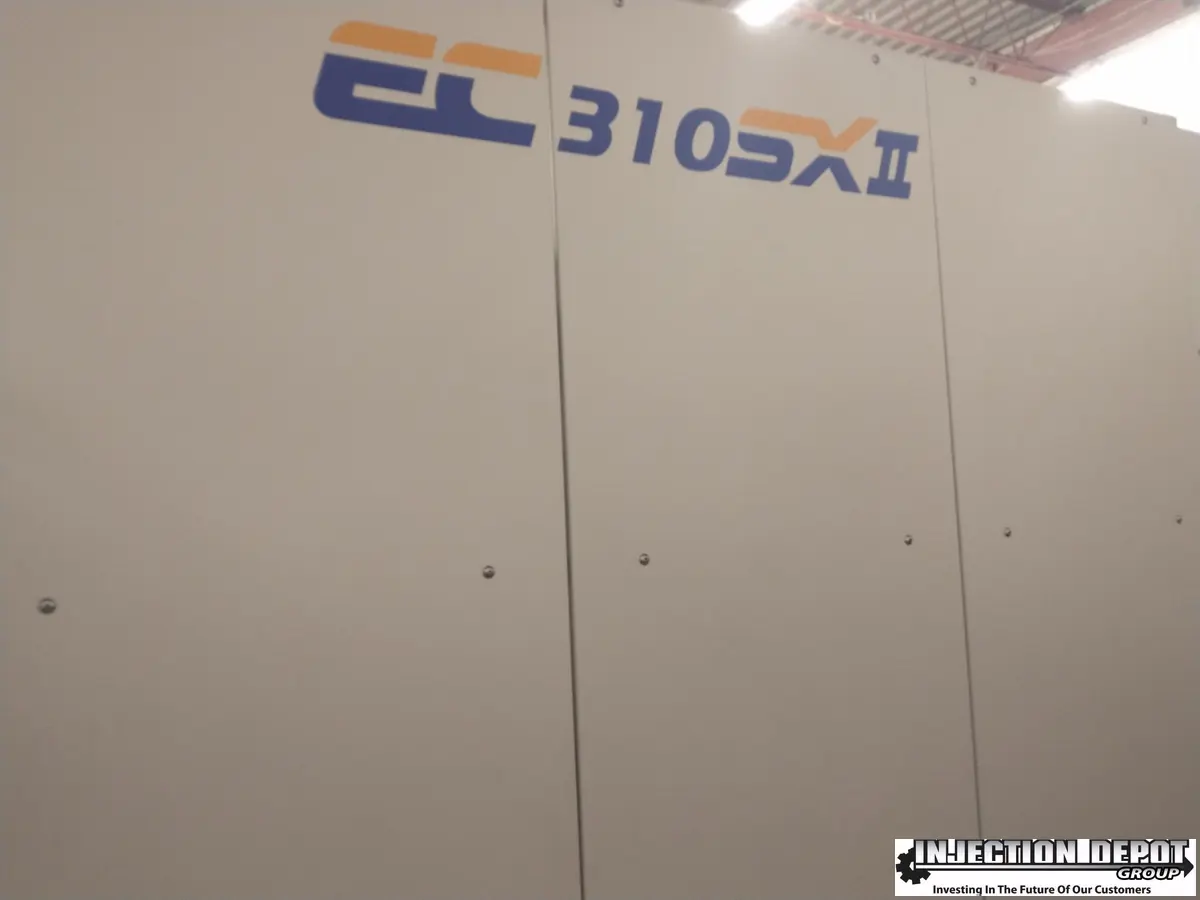

2018 EC310SXIIV50-i17 Electric Injection Molding Machine
HORIZONTAL INJECTION MOULDING MACHINES
| Type | All Electric |
| Clamping Force Tonnage | 310 T |
| Barrel Code | AT |
| Shot Volume (PS) | 27.5 oz |
| Screw Diameter | 60 mm |
| Maximum Injection Pressure | 29000 psi |
| Maximum Holding Pressure | 29000 psi |
| Nozzle Touch Force | 6.6 T |
| Tie Bar Distance H | 28.7" |
| Tie Bar Distance V | 26" |
| Platen Dimension H | 40.6" |
| Platen Dimension V | 37.8" |
| Clamp Stroke | 23.6" |
| Ejector Force | 6.6 T |
| Ejector Stroke | 5.9" |
| Power supply Volts | 230 |
| Injection Orientation | Horz |
| Hours | 11,504 hr. |
| Machine under power | Under power running with mould |
| Control | CNC (V50) |
MACHINE STANDARDS & REQUESTED MACHINE OPTIONS:
CUSTOMER IS SUPPLYING TRANSFORMER SCREW-HIGH PERFORMANCE OLEFIN DUAL AIR BLOW
EJECTOR MOTOR WITH BRAKE
HOPPER THROAT TEMPERATURE CONTROL
MOLD EJECTOR PLATE MONITOR
PROGRAM BARREL CONTROLLER
SPI ROBOT INTERFACE RECEPTACLE (50-PIN/EUROMAP 67) VIBRATION MOUNTING PADS
HYDRAULIC CORE PULL DUAL PROGRAM & ELECTRICAL INTERFACE ALARM LIGHT – 3 STAGE
REJECT SHOT RECEPTACLE
INDUSTRIAL SOLUTIONS MOLD TRIAL
TUNGSTEN CARBIDE BARREL
AUTO PURGE
HEATER BAND FAILURE ALARM SELECTABLE SIGNAL OUTPUT (X6) PNEUMATIC MOLD VALVE GATE (1 ZONE) SIMULTANEOUS EXTRUDE & CLAMP
USB MEMORY PORT
PNEUMATIC CORE PULL-SINGLE (TIMER ONLY)
INSPECTION AND STICKER (INTERTEK)
INJECTVISOR V50 CONTROL
