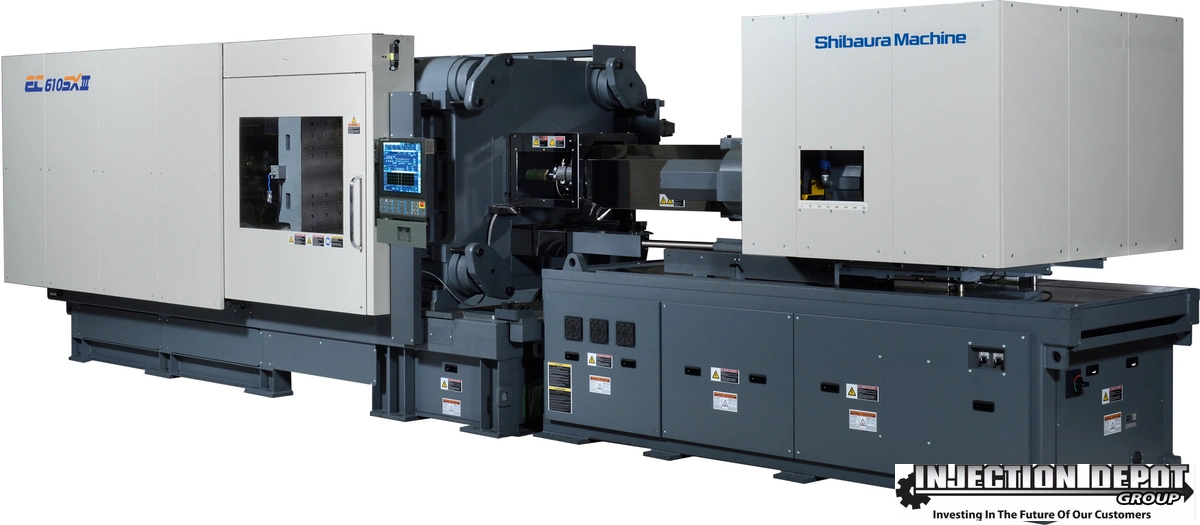

Shibaura Machine EC610SXIIIV70-i36Y
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 610 |
| Barrel Code | B |
| Shot Volume (PS) | 77.3 oz |
| Shot Volume (PE) | 61.4 oz |
| Screw Diameter | 2.76" |
| Maximum Injection Pressure | 34300 psi |
| Maximum Holding Pressure | 28800 psi |
| Screw Speed STD | 180 rpm |
| Screw Speed High Torque | 180 rpm |
| Injection Rate STD | 891 cm3/sec |
| Screw Torque STD | 3310 NxM |
| Screw Torque High Speed | 4610 NxM |
| Plasticizing Capacity (PS) STD | 111.1 g/sec |
| Plasticizing Capacity (PS) High Torque | 77.8 g/sec |
| Nozzle Touch Force | 6.6 T |
| Tie Bar Distance H | 38.1" |
| Tie Bar Distance V | 35.8" |
| Platen Dimension H | 53.7" |
| Platen Dimension V | 51.2" |
| Clamp Stroke | 35.4" |
| Maximum Daylight | 74.8" |
| Mold Height Min | 15.7" |
| Mold Height Max | 39.4" |
| Ejector Force | 14.3 T |
| Ejector Stroke | 7.1" |
| Power supply Volts | 230 |
| Main Breaker Electric Capacity | 200 va |
| Heater Capacity | 29.8 kw |
| Control | CNC (V70) |
| Dimensions | 27.7x7.5x7.7 Feet |
| Weight | 31.4 US Ton |
