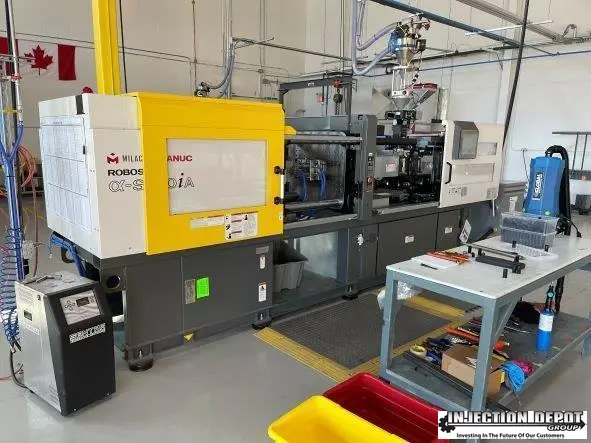

2018 MILACRON ROBOSHOT S165I MOULDING MACHINE
HORIZONTAL INJECTION MOULDING MACHINES
| Type | All Electric |
| Clamping Force Tonnage | 165 T |
| Shot Volume (PS) | 5.1 oz |
| Screw Diameter | 36" |
| Maximum Injection Pressure | 40611 psi |
| Maximum Holding Pressure | 40611 psi |
| Screw Speed STD | 400 rpm |
| Injection Rate STD | 160 ft³/min. |
| Nozzle Touch Force | 3.3 T |
| Tie Bar Distance H | 22" |
| Tie Bar Distance V | 20.1" |
| Platen Dimension H | 31.5" |
| Platen Dimension V | 29.5" |
| Maximum Daylight | 37.01" |
| Ejector Force | 3.85 T |
| Ejector Stroke | 5.91" |
| Power supply Volts | 230 |
| Machine under power | not under power in storage |
| Dimensions | 196.5 x 55.4 x 71.5 in |
| Weight | 14,330 lbs |
Pneumatic, mold gate: Qty of 4
feedscrew, GP, Colmonoy 56, chrome plated
Roboshot, tip assembly, H13 free flow, in place of std
Robotshot, euromap 73, external safety gate interface
