NISSEI FV9300-600L

Name: INJECTION DEPOT GROUP
Address: ,, CA
Telephone: 1-877-737-7610

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

FV9300-600L

Year:

2002

Status:

For Sale

Hydraulic Ejection
Corepull
Power Gate
Under Power in Northeast Factory

ImperialMetric

Type	Hydraulic	Hydraulic
Clamping Force Tonnage	1,200 T	1,088.623 t
Shot Volume (PS)	240 oz	6,803.9 g
Tie Bar Distance H	55.1"	1,399.5 mm
Tie Bar Distance V	55.1"	1,399.5 mm
Platen Dimension H	78"	1,981.2 mm
Platen Dimension V	78"	1,981.2 mm
Maximum Daylight	94.8"	2,407.9 mm
Power supply Volts	480	480
Hours	35,786 hr.	35,786 hr.
Machine under power	Under power running with mould	Under power running with mould

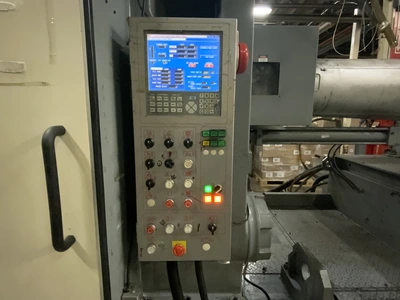

Control	CNC (NC9300T)	CNC (NC9300T)
Dimensions	12.39 X 2.84 X 2.55 M	12.39 X 2.84 X 2.55 M
Weight	60.5 US Ton	60.5 US Ton
