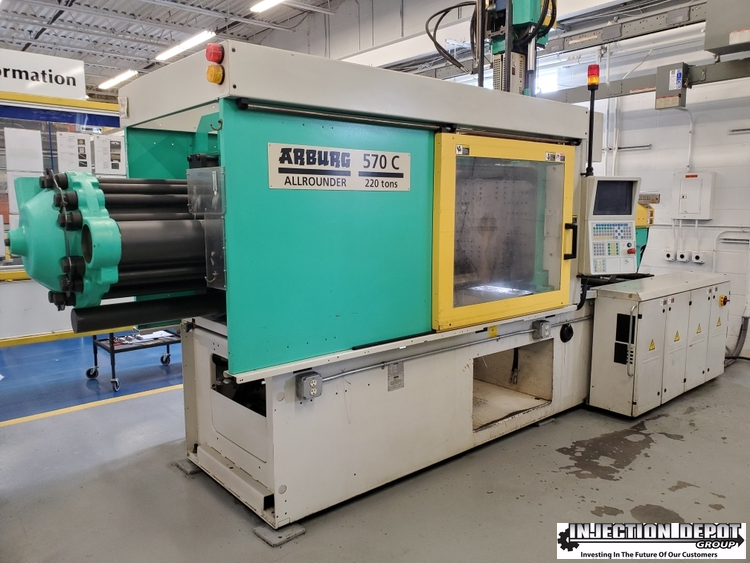

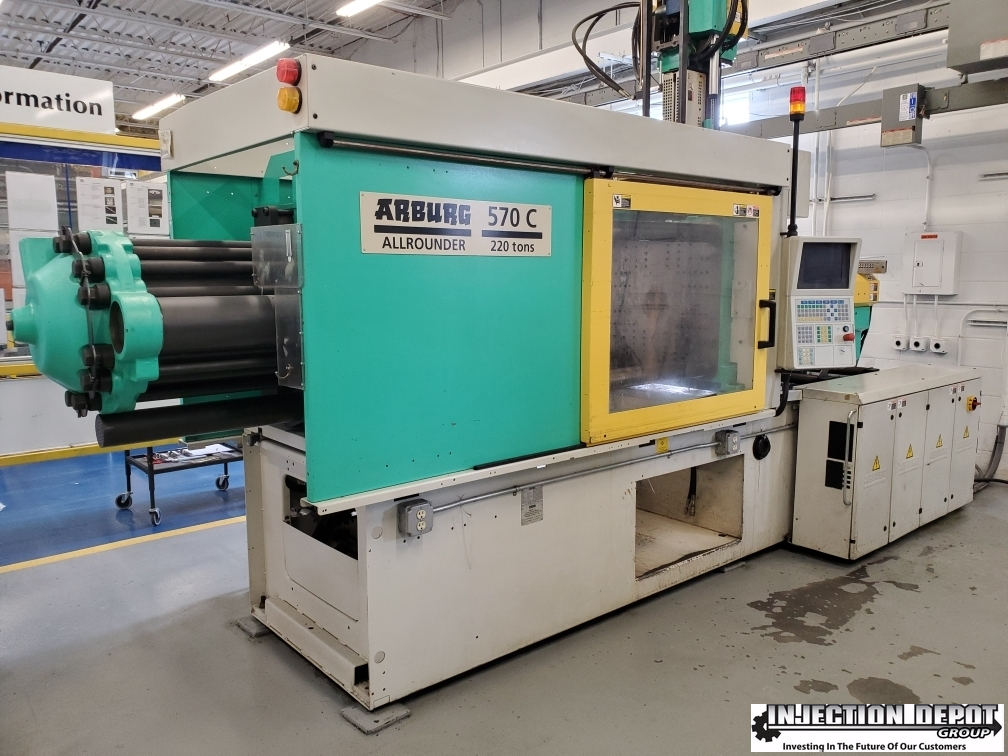

2004 Arburg 570C 2 Shot Rotary
Have one to sell?
ConditionUsed
1 available
2 shot "L" Configuration ; Top Mount Second Injection Unit
Rotary Plateb ; included
OPTIONS:
- hi wear screw and barrel
- min mol height increased to 400mm
- 3 core pull
- nozzle heaters in both injection units
- 6 cooling circuits
2 shot "L" Configuration ; Top Mount Second Injection Unit
Rotary Plateb ; included
OPTIONS:
- hi wear screw and barrel
- min mol height increased to 400mm
- 3 core pull
- nozzle heaters in both injection units
- 6 cooling circuits
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 242 T |
| Shot Volume (PS) | 11.4 oz |
| Secondary Shot Size PS | 2.3 oz |
| Tie Bar Distance H | 22.4" |
| Tie Bar Distance V | 22.4" |
| Platen Dimension H | 31.2" |
| Platen Dimension V | 31.2" |
| Maximum Daylight | 37.4" |
| Mold Height Min | 15.74" |
| Mold Height Max | 400" |
| Power supply Volts | 460 |
| Injection Orientation | Horz |
| IMM Type | Multi Shot |
