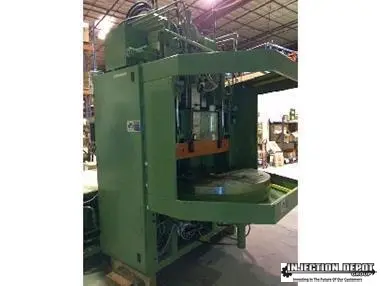

2001 90 Tons Engel Vertical/Vertical Injection Molding Machine

2001 90 Tons Engel Vertical/Vertical Injection Molding Machine

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VERTICAL INJECTION MOULDING MACHINES
Manufacturer:
ENGEL
Model:
ES 330/90 VVROTL
Year:
2001
Status:
For Sale
Tonnage90 T81.647 t
Shot Size5 oz141.7 g
TypeHydraulicHydraulic
Clamp TypeRotaryRotary
Injection Unit OrientationVerticalVertical
ControlCNC (CC-100 EL A03)CNC (CC-100 EL A03)
Dimensions137" x 93" x 142"137" x 93" x 142"
Weight17,020 lbs17,020 lbs

Platen Size: 27.5" x 17.7"
​Tie Bar Spacing: NA
Min/Max Daylight:7.48 - 21.26"
Min/Max Mold Ht: 7.48" - NA
Clamp Stroke:13.78"
Ejector Stroke: 3.94"
Ejector force:1.3 US Tons

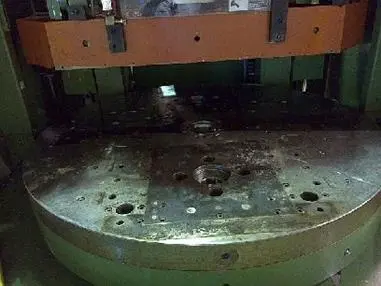

Rotary table dia:46.45"
Mold pitch cir dia: 20.87
Voltage:460V

Vertical Clamp/Vertical Injection
Light curtains
2 Position rotary table
