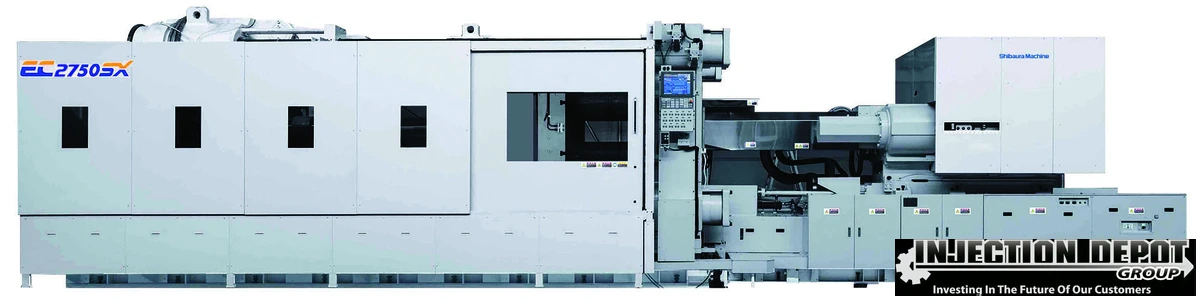

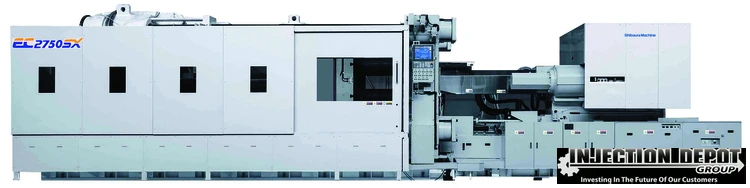

Shibaura Machine EC2750SXIIIV70-i215 AM

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC2750SXIIIV70-i215 AM
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage27502,494.761 t
Barrel CodeAMAM
Shot Volume (PS)384 oz10,886.2 g
Shot Volume (PE)304 oz8,618.2 g
Screw Diameter5.51"139.95 mm
Maximum Injection Pressure26100 psi
Maximum Holding Pressure21700 psi
Screw Speed STD90 RPM90 rpm
Screw Speed High Torque78 RPM78 rpm
Injection Rate STD2000 cm3/sec56.6 m³/min.
Screw Torque STD9150 NxM9150 NxM
Screw Torque High Speed15900 NxM15900 NxM
Plasticizing Capacity (PS) STD192 g/sec5,443.1 g
Nozzle Touch Force15.9 T14.424 t
Tie Bar Distance H83.4"2,118.4 mm
Tie Bar Distance V71.5"1,816.1 mm
Platen Dimension H118.1"2,999.7 mm
Platen Dimension V92.5"2,349.5 mm
Clamp Stroke70.8"1,798.3 mm
Maximum Daylight137.7"3,497.6 mm
Mold Height Min31.5"800.1 mm
Mold Height Max66.9"1,699.3 mm
Ejector Force48.5 T43.999 t
Ejector Stroke13.7"347.98 mm
Power supply Volts230230
Main Breaker Electric Capacity700 va
Heater Capacity85 kW85 kw
ControlCNC (V70)CNC (V70)
Dimensions53.5 x 15.1 x 13.2 Feet53.5 x 15.1 x 13.2 Feet
Weight221 US Ton221 US Ton
