2001 Husky GL400GEN-RS120/110 high speed with stack mold carrier Molding Machine

Have one to sell?

sales@injectiondepot.ca

ConditionUsed

Quantity

1 available

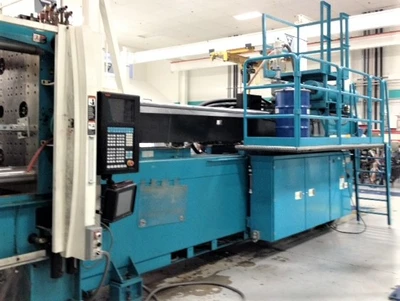

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP (1)

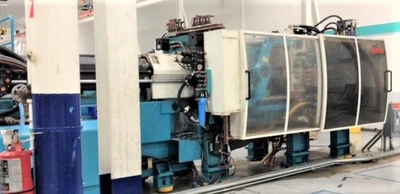

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP (2)

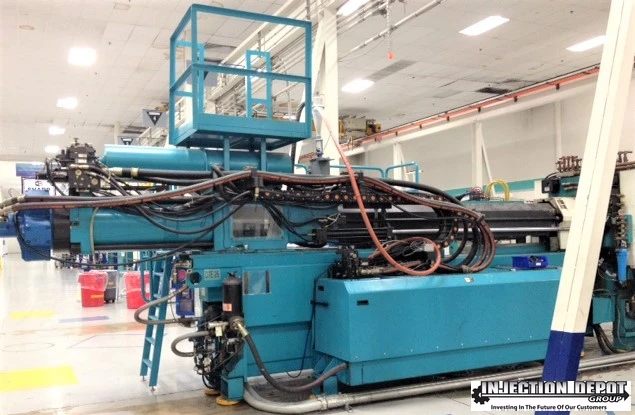

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP (3)

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP (4)

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP (5)

2001 HUSKY GL400GEN-RS120/110 HORIZONTAL INJECTION MOULDING MACHINES | INJECTION DEPOT GROUP

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

GL400GEN-RS120/110

Condition:

Good

Year:

2001

Status:

For Sale

Specifications

ImperialMetric

Type	Hydraulic	Hydraulic
Clamping Force Tonnage	440 T	399.162 t
Shot Volume (PS)	157.3 oz	4,459.4 g
Tie Bar Distance H	32.3"	820.42 mm
Tie Bar Distance V	32.3"	820.42 mm
Platen Dimension H	46.1"	1,170.9 mm
Platen Dimension V	47.1"	1,196.3 mm
Clamp Stroke	34.6"	878.84 mm
Maximum Daylight	64.9"	1,648.5 mm
Mold Height Min	25.6"	650.24 mm
Mold Height Max	47.2"	1,198.9 mm
Hours	49,525 hr.	49,525 hr.
Control	CNC (HMI)	CNC (HMI)
Weight	75000	75000

Equipped With

Stack mold Carrier ; yes
Eject on the fly ; yes

Key Features:
- Core pull
- Air Blow
- Hydraulic KO
- High speed injection-accumulator
- valve gate
- unscrewing core pull
