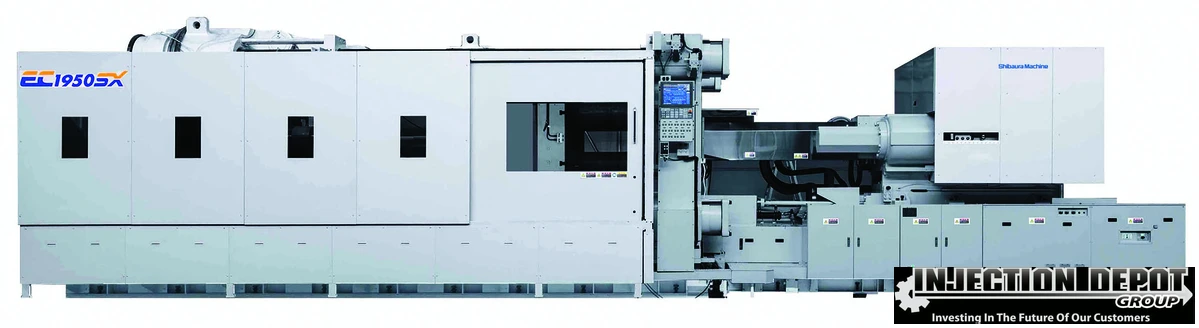

Shibaura Machine EC1950SXIIIV70-i155 B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC1950SXIIIV70-i155 B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage19501,799.857 t
Barrel CodeBB
Shot Volume (PS)343.2 oz9,729.5 g
Shot Volume (PE)272.3 oz7,719.6 g
Screw Diameter5.51"139.95 mm
Maximum Injection Pressure20700 psi
Maximum Holding Pressure17200 psi
Screw Speed STD90 RPM90 rpm
Screw Speed High Torque114 RPM114 rpm
Injection Rate STD2070 cm3/sec58.6 m³/min.
Screw Torque STD14500 NxM14500 NxM
Screw Torque High Speed11430 NxM11430 NxM
Plasticizing Capacity (PS) STD192 g/sec5,443.1 g
Plasticizing Capacity (PS) High Torque222 g/sec6,293.6 g
Nozzle Touch Force10.4 T9.435 t
Tie Bar Distance H72.8"1,849.1 mm
Tie Bar Distance V65.4"1,661.2 mm
Platen Dimension H102.4"2,601 mm
Platen Dimension V92.5"2,349.5 mm
Clamp Stroke66.9"1,699.3 mm
Maximum Daylight126"3,200.4 mm
Mold Height Min31.5"800.1 mm
Mold Height Max59.1"1,501.1 mm
Ejector Force48.5 T43.999 t
Ejector Stroke11.8"299.72 mm
Power supply Volts230230
Main Breaker Electric Capacity500 va
Heater Capacity82.6 kW82.6 kw
ControlCNC (V70)CNC (V70)
Dimensions46.8 x 12.5 x 11.6 Feet46.8 x 12.5 x 11.6 Feet
Weight157 US Ton157 US Ton
