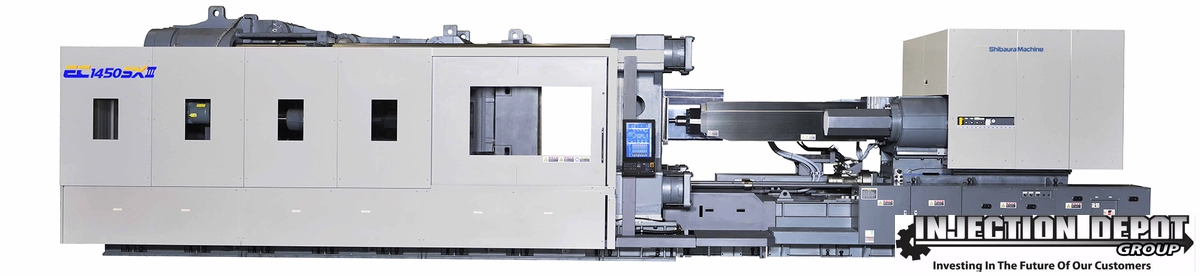

Shibaura Machine EC1450SXIIIV70-i155 A
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 1450 |
| Barrel Code | A |
| Shot Volume (PS) | 273.5 oz |
| Shot Volume (PE) | 216.9 oz |
| Screw Diameter | 4.92" |
| Maximum Injection Pressure | 26100 psi |
| Maximum Holding Pressure | 21700 psi |
| Screw Speed STD | 101 rpm |
| Screw Speed High Torque | 127 rpm |
| Injection Rate STD | 1650 cm3/sec |
| Screw Torque STD | 14500 NxM |
| Screw Torque High Speed | 9260 NxM |
| Plasticizing Capacity (PS) STD | 164 g/sec |
| Plasticizing Capacity (PS) High Torque | 178 g/sec |
| Nozzle Touch Force | 10.4 T |
| Tie Bar Distance H | 55.1" |
| Tie Bar Distance V | 55.1" |
| Platen Dimension H | 78.7" |
| Platen Dimension V | 78.7" |
| Clamp Stroke | 59" |
| Maximum Daylight | 110.2" |
| Mold Height Min | 25.6" |
| Mold Height Max | 51.2" |
| Ejector Force | 31.4 T |
| Ejector Stroke | 9.8" |
| Power supply Volts | 230 |
| Main Breaker Electric Capacity | 500 va |
| Heater Capacity | 67.9 kw |
| Control | CNC (V70) |
| Dimensions | 42.9 x 10.5 x 11.2 Feet |
| Weight | 113 US Ton |
