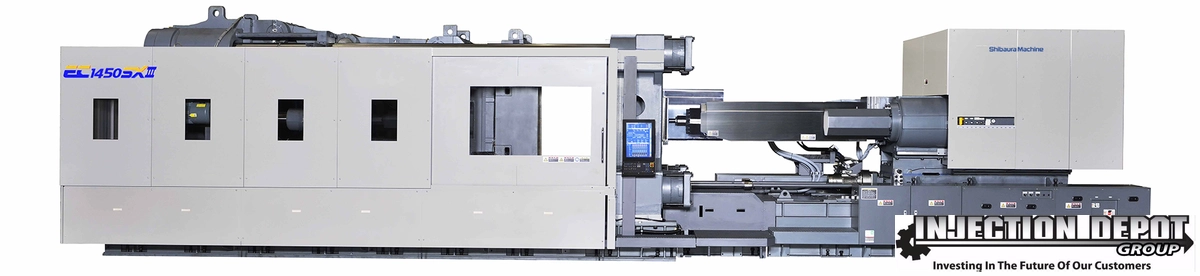

Shibaura Machine EC1450SXIIIV70-i120 B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC1450SXIIIV70-i120 B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage14501,299.997 t
Barrel CodeBB
Shot Volume (PS)252 oz7,144.1 g
Shot Volume (PE)200 oz5,669.9 g
Screw Diameter4.92"124.97 mm
Maximum Injection Pressure22000 psi
Maximum Holding Pressure18400 psi
Screw Speed STD101 RPM101 rpm
Screw Speed High Torque78 RPM78 rpm
Injection Rate STD1710 cm3/sec48.4 m³/min.
Screw Torque STD9150 NxM9150 NxM
Screw Torque High Speed13700 NxM13700 NxM
Plasticizing Capacity (PS) STD161 g/sec4,564.3 g
Plasticizing Capacity (PS) High Torque122 g/sec3,458.6 g
Nozzle Touch Force10.4 T9.435 t
Tie Bar Distance H55.1"1,399.5 mm
Tie Bar Distance V55.1"1,399.5 mm
Platen Dimension H78.7"1,999 mm
Platen Dimension V78.7"1,999 mm
Clamp Stroke59"1,498.6 mm
Maximum Daylight110.2"2,799.1 mm
Mold Height Min25.6"650.24 mm
Mold Height Max51.2"1,300.5 mm
Ejector Force31.4 T28.486 t
Ejector Stroke9.8"248.92 mm
Power supply Volts230230
Main Breaker Electric Capacity400 va
Heater Capacity67.9 kW67.9 kw
ControlCNC (V70)CNC (V70)
Dimensions41.7 x 10.3 x 10.4 Feet41.7 x 10.3 x 10.4 Feet
Weight98.5 US Ton98.5 US Ton
