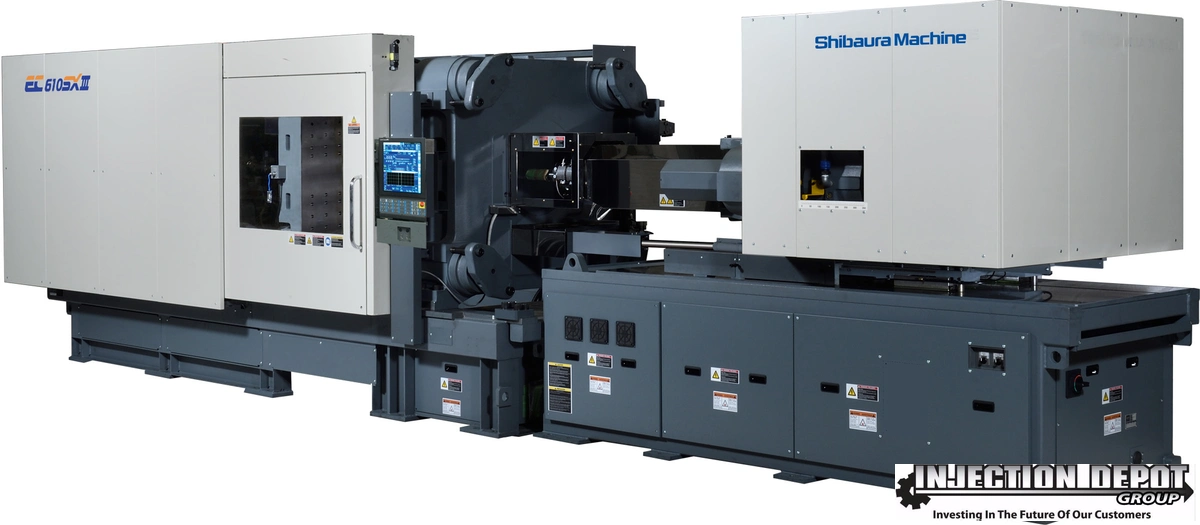

Shibaura Machine EC610SXIIIV70-i17AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC610SXIIIV70-i17AT
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage610549.755 t
Barrel CodeATAT
Shot Volume (PS)27.5 oz779.6 g
Shot Volume (PE)21.8 oz618 g
Screw Diameter2.36"59.944 mm
Maximum Injection Pressure29000 psi
Maximum Holding Pressure29000 psi
Screw Speed STD220 RPM220 rpm
Screw Speed High Torque180 RPM180 rpm
Injection Rate STD452 cm3/sec12.8 m³/min.
Injection Rate High Speed848 cm3/sec24 m³/min.
Screw Torque STD2360 NxM2360 NxM
Screw Torque High Speed2900 NxM2900 NxM
Plasticizing Capacity (PS) STD63.9 g/sec1,811.5 g
Plasticizing Capacity (PS) High Torque52.8 g/sec1,496.9 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H38.1"967.74 mm
Tie Bar Distance V35.8"909.32 mm
Platen Dimension H53.7"1,364 mm
Platen Dimension V51.2"1,300.5 mm
Clamp Stroke35.4"899.16 mm
Maximum Daylight74.8"1,899.9 mm
Mold Height Min15.7"398.78 mm
Mold Height Max39.4"1,000.8 mm
Ejector Force14.3 T12.973 t
Ejector Stroke7.1"180.34 mm
Power supply Volts230230
Main Breaker Electric Capacity175 va
Heater Capacity25.5 kW25.5 kw
ControlCNC (V70)CNC (V70)
Dimensions27.3 x 7.5 x 7.3 Feet27.3 x 7.5 x 7.3 Feet
Weight29.0 US Ton29.0 US Ton
