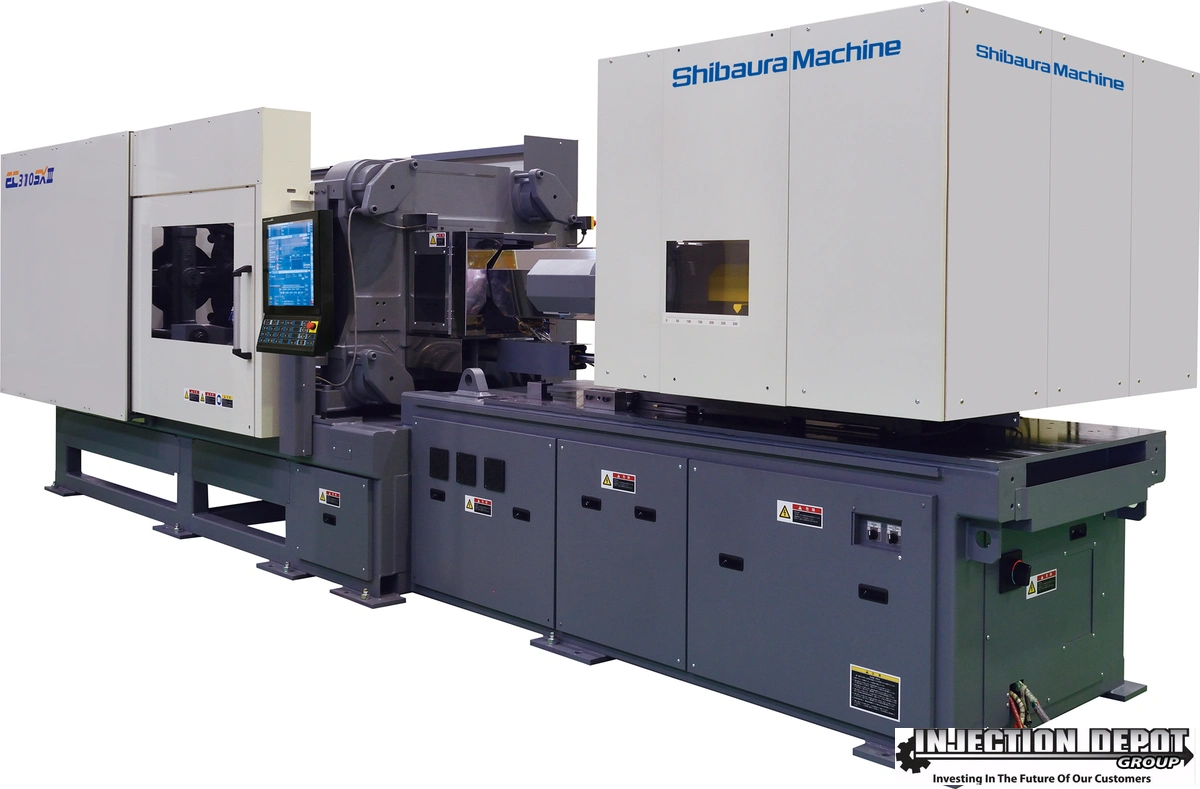

Shibaura Machine EC310SXIIIV70-i17 AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC310SXIIIV70-i17 AT
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage310US Tons279.413 t
Barrel CodeATAT
Shot Volume (PS)27.5 oz779.6 g
Shot Volume (PE)21.8 oz618 g
Screw Diameter2.36"59.944 mm
Maximum Injection Pressure29000 psi
Maximum Holding Pressure29000 psi
Screw Speed STD220 RPM220 rpm
Injection Rate STD452 cm3/sec12.8 m³/min.
Injection Rate High Speed848 cm3/sec24 m³/min.
Screw Torque STD2360 NxM2360 NxM
Plasticizing Capacity (PS) STD63.9 g/sec1,811.5 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H28.7"728.98 mm
Tie Bar Distance V26"660.4 mm
Platen Dimension H40.6"1,031.2 mm
Platen Dimension V37.8"960.12 mm
Clamp Stroke23.6"599.44 mm
Maximum Daylight53.1"1,348.7 mm
Mold Height Min9.8"248.92 mm
Mold Height Max29.5"749.3 mm
Ejector Force6.6 T5.987 t
Ejector Stroke5.9"149.86 mm
Main Breaker Electric Capacity61 kva
Heater Capacity25.5 kW25.5 kw
Injection OrientationHorzHorz
Dimensions22.8 x 6.4 x 7.1 Feet22.8 x 6.4 x 7.1 Feet
Weight15.2 US Tons15.2 US Tons
