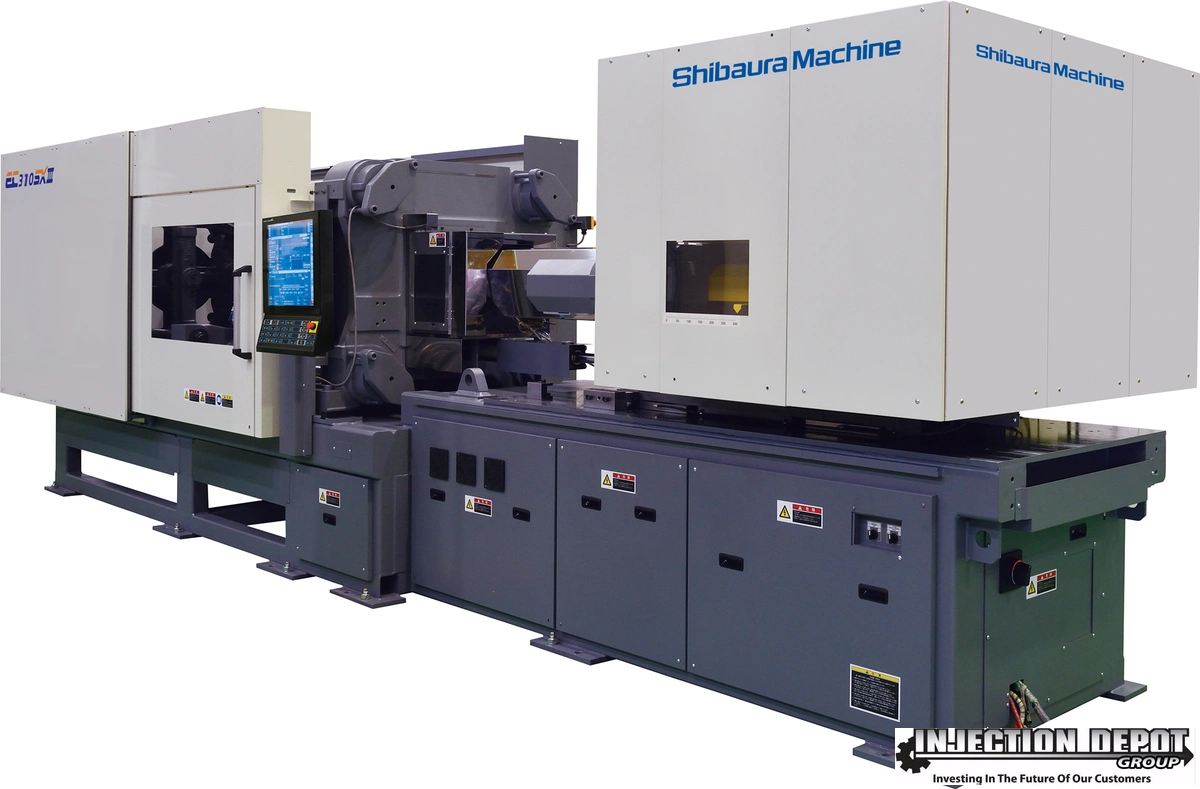

Shibaura Machine EC310SXIIIV70-i10 A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC310SXIIIV70-i10 A
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage310279.413 t
Barrel CodeAA
Shot Volume (PS)15.9 oz450.8 g
Shot Volume (PE)12.6 oz357.2 g
Screw Diameter1.97"50.038 mm
Maximum Injection Pressure29000 psi
Maximum Holding Pressure29000 psi
Screw Speed STD255 RPM255 rpm
Injection Rate STD314 cm3/sec8.9 m³/min.
Injection Rate High Speed687 cm3/sec19.5 m³/min.
Screw Torque STD1421 NxM1421 NxM
Plasticizing Capacity (PS) STD44.4 g/sec1,258.7 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H28.7"728.98 mm
Tie Bar Distance V26"660.4 mm
Platen Dimension H40.6"1,031.2 mm
Platen Dimension V37.8"960.12 mm
Clamp Stroke23.6"599.44 mm
Maximum Daylight53.1"1,348.7 mm
Mold Height Min9.8"248.92 mm
Mold Height Max29.5"749.3 mm
Ejector Force6.6 T5.987 t
Ejector Stroke5.9"149.86 mm
Main Breaker Electric Capacity61 kva
Heater Capacity15.2 kW15.2 kw
ControlCNC (V70)CNC (V70)
Dimensions22.0 x 6.4 x 7.1 Feet22.0 x 6.4 x 7.1 Feet
Weight13.7 US Ton13.7 US Ton
