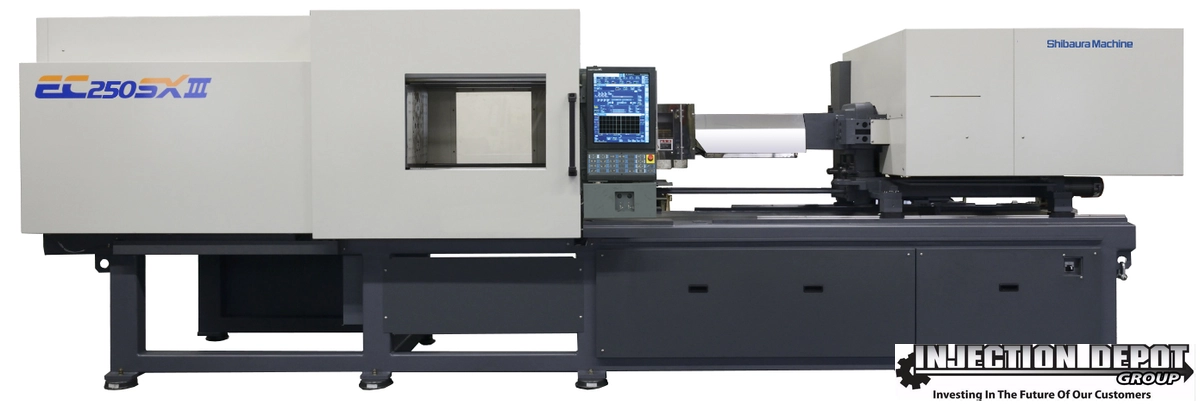

Shibaura Machine EC250SXIIIV70-U48 8Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC250SXIIIV70-U48 8Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage250230.425 t
Barrel Code8Y8Y
Shot Volume (PS)10.3 oz292 g
Shot Volume (PE)8.2 oz231.9 g
Screw Diameter1.77"44.958 mm
Maximum Injection Pressure35800 psi
Maximum Holding Pressure35800 psi
Screw Speed STD285 RPM285 rpm
Injection Rate STD254 cm3/sec7.2 m³/min.
Injection Rate High Speed557 cm3/sec15.8 m³/min.
Screw Torque STD1058 NxM1058 NxM
Plasticizing Capacity (PS) STD33.3 g/sec944 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H24"609.6 mm
Tie Bar Distance V22"558.8 mm
Platen Dimension H34.6"878.84 mm
Platen Dimension V32.7"830.58 mm
Clamp Stroke21.7"551.18 mm
Maximum Daylight48.4"1,229.4 mm
Mold Height Min9.84"249.94 mm
Mold Height Max26.8"680.72 mm
Ejector Force5.5 T4.99 t
Ejector Stroke5.12"130.05 mm
Main Breaker Electric Capacity61 kva
Heater Capacity15.2 kW15.2 kw
ControlCNC (V70)CNC (V70)
Dimensions21.0 x 5.4 x 6.5 Feet21.0 x 5.4 x 6.5 Feet
Weight10.2 US Ton10.2 US Ton
