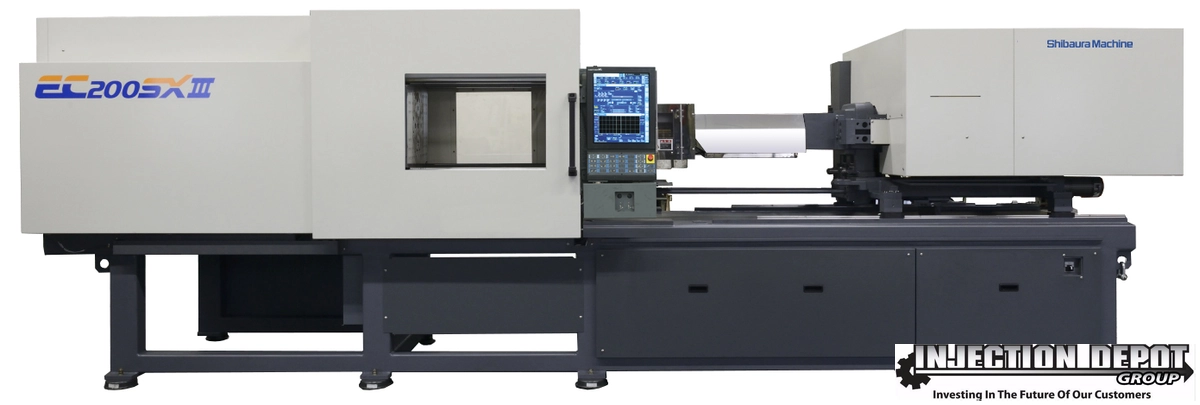

Shibaura Machine EC200SXIIIV70-U48 8B
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 200 |
| Barrel Code | 8B |
| Shot Volume (PS) | 15.4 oz |
| Shot Volume (PE) | 12.2 oz |
| Screw Diameter | 2.17" |
| Maximum Injection Pressure | 23900 psi |
| Maximum Holding Pressure | 23900 psi |
| Screw Speed STD | 230 rpm |
| Injection Rate STD | 380 cm3/sec |
| Injection Rate High Speed | 832 cm3/sec |
| Screw Torque STD | 1421 NxM |
| Plasticizing Capacity (PS) STD | 52.8 g/sec |
| Nozzle Touch Force | 3.3 T |
| Tie Bar Distance H | 22" |
| Tie Bar Distance V | 20.1" |
| Platen Dimension H | 31.1" |
| Platen Dimension V | 29.1" |
| Clamp Stroke | 17.7" |
| Maximum Daylight | 41.3" |
| Mold Height Min | 7.87" |
| Mold Height Max | 23.6" |
| Ejector Force | 5.5 T |
| Ejector Stroke | 5.12" |
| Main Breaker Electric Capacity | 61 kva |
| Heater Capacity | 15.8 kw |
| Control | CNC (V70) |
| Dimensions | 19.9 x 5.1 x 5.9 Feet |
| Weight | 8.0 US Ton |
