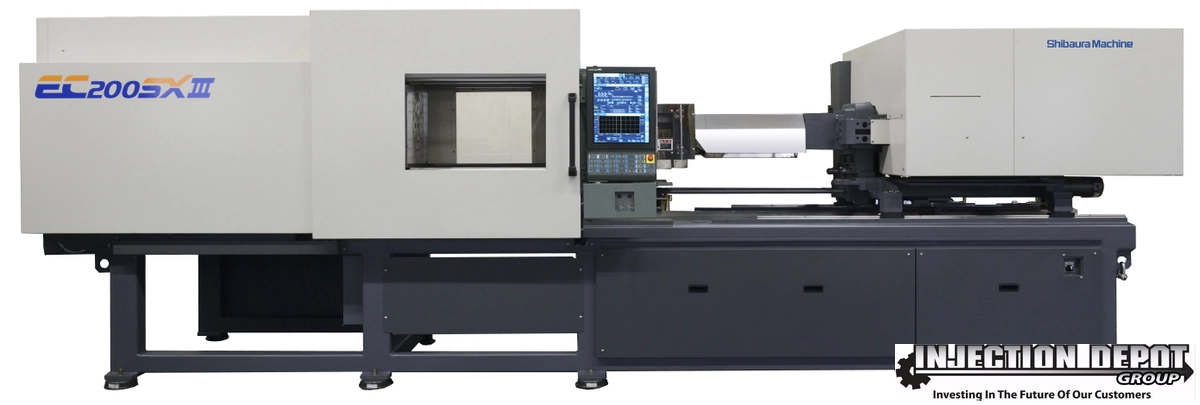

Shibaura Machine EC200SXIIIV70-U48 6Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC200SXIIIV70-U48 6Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage200179.623 t
Barrel Code6Y6Y
Shot Volume (PS)7.3 oz208.1 g
Shot Volume (PE)5.8 oz165 g
Screw Diameter1.57"39.878 mm
Maximum Injection Pressure36700 psi
Maximum Holding Pressure36700 psi
Screw Speed STD320 RPM320 rpm
Injection Rate STD201 cm3/sec5.7 m³/min.
Injection Rate High Speed440 cm3/sec12.5 m³/min.
Screw Torque STD761 NxM761 NxM
Plasticizing Capacity (PS) STD30.6 g/sec867.5 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H22"558.8 mm
Tie Bar Distance V20.1"510.54 mm
Platen Dimension H31.1"789.94 mm
Platen Dimension V29.1"739.14 mm
Clamp Stroke17.7"449.58 mm
Maximum Daylight41.3"1,049 mm
Mold Height Min7.87"199.9 mm
Mold Height Max23.6"599.44 mm
Ejector Force5.5 T4.99 t
Ejector Stroke5.12"130.05 mm
Main Breaker Electric Capacity59 kva
Heater Capacity13.6 kW13.6 kw
ControlCNC (V70)CNC (V70)
Dimensions19.3 x 5.1 x 5.9 Feet19.3 x 5.1 x 5.9 Feet
Weight8.0 US Ton8.0 US Ton
