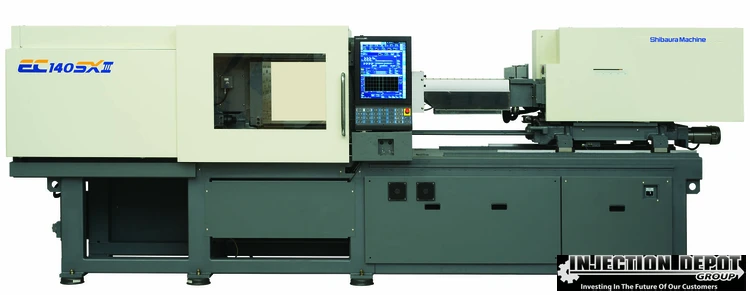

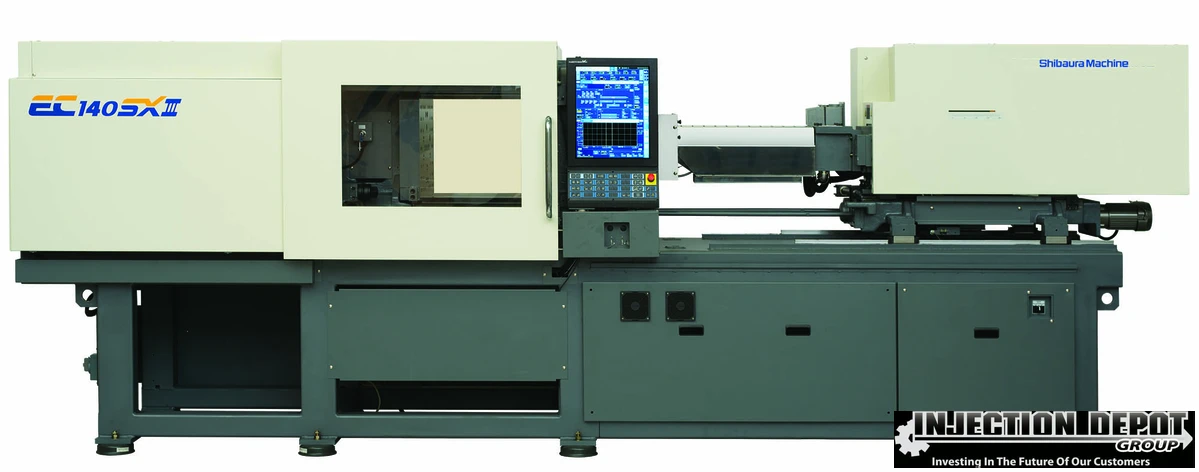

Shibaura Machine EC140SXIIIV70-U34 2Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC140SXIIIV70-U34 2Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage140129.728 t
Barrel Code2Y2Y
Shot Volume (PS)2.5 oz72 g
Shot Volume (PE)2 oz57 g
Screw Diameter1.1"27.94 mm
Maximum Injection Pressure41600 psi
Maximum Holding Pressure41600 psi
Screw Speed STD400 RPM400 rpm
Injection Rate STD123 cm3/sec3.5 m³/min.
Injection Rate High Speed246 cm3/sec7 m³/min.
Screw Torque STD280 NxM280 NxM
Plasticizing Capacity (PS) STD11.1 g/sec314.7 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H20.1"510.54 mm
Tie Bar Distance V18.1"459.74 mm
Platen Dimension H28.3"718.82 mm
Platen Dimension V26.4"670.56 mm
Clamp Stroke15.7"398.78 mm
Maximum Daylight37.4"949.96 mm
Mold Height Min7.1"180.34 mm
Mold Height Max21.7"551.18 mm
Ejector Force3.3 T2.994 t
Ejector Stroke3.54"89.916 mm
Main Breaker Electric Capacity35 kva
Heater Capacity6.8 kW6.8 kw
ControlCNC (V70)CNC (V70)
Dimensions15.5 x 4.7 x 5.6 Feet15.5 x 4.7 x 5.6 Feet
Weight5.8 US Ton5.8 US Ton
