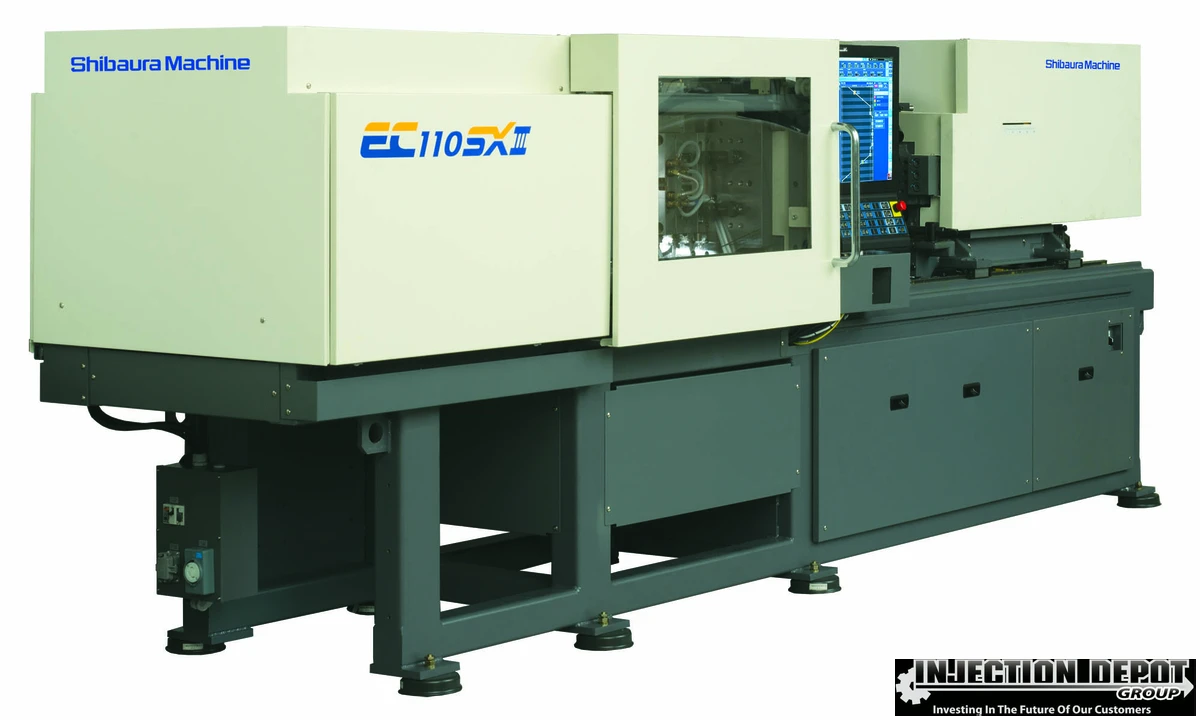

Shibaura Machine EC110SXIIIV70-U34 2A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC110SXIIIV70-U34 2A
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage11099.79 t
Barrel Code2A2A
Shot Volume (PS)3.3 oz94.1 g
Shot Volume (PE)2.6 oz75.1 g
Screw Diameter1.26"32.004 mm
Maximum Injection Pressure31900 psi
Maximum Holding Pressure31900 psi
Screw Speed STD390 RPM390 rpm
Injection Rate STD161 cm3/sec4.6 m³/min.
Screw Torque STD407 NxM407 NxM
Plasticizing Capacity (PS) STD16.9 g/sec479.1 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H18.1"459.74 mm
Tie Bar Distance V16.1"408.94 mm
Platen Dimension H26"660.4 mm
Platen Dimension V24"609.6 mm
Clamp Stroke13.8"350.52 mm
Maximum Daylight35.4"899.16 mm
Mold Height Min7.1"180.34 mm
Mold Height Max21.7"551.18 mm
Ejector Force3.3 T2.994 t
Ejector Stroke3.54"89.916 mm
Main Breaker Electric Capacity35 kva
Heater Capacity6.8 kW6.8 kw
ControlCNC (V70)CNC (V70)
Dimensions15.2 x 4.2 x 5.4 Feet15.2 x 4.2 x 5.4 Feet
Weight4.7 US Ton4.7 US Ton
