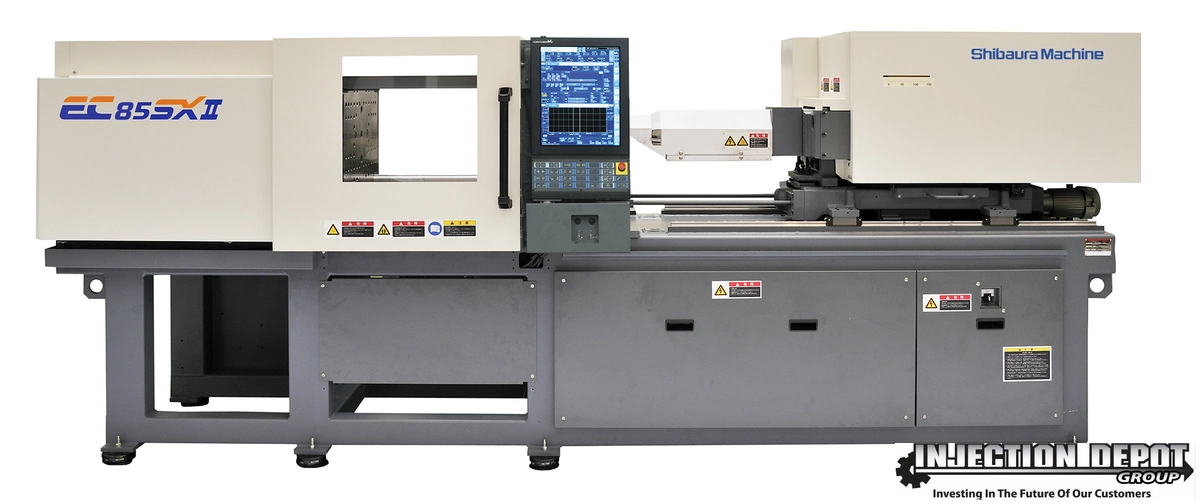

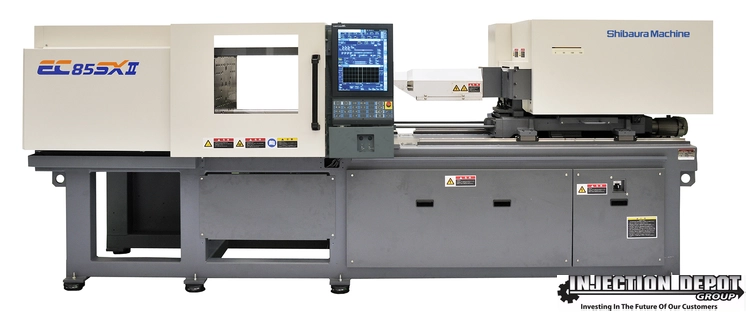

Shibaura Machine EC85SXIIIV70-U22 1Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC85SXIIIV70-U22 1Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage8575.296 t
Barrel Code1Y1Y
Shot Volume (PS)1.2 oz34.9 g
Shot Volume (PE)1 oz28.1 g
Screw Diameter0.87"22.098 mm
Maximum Injection Pressure39200 psi
Maximum Holding Pressure39200 psi
Screw Speed STD420 RPM420 rpm
Injection Rate STD76 cm3/sec2.2 m³/min.
Screw Torque STD143 NxM143 NxM
Plasticizing Capacity (PS) STD6.1 g/sec172.9 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H16.1"408.94 mm
Tie Bar Distance V14.2"360.68 mm
Platen Dimension H22.8"579.12 mm
Platen Dimension V20.9"530.86 mm
Clamp Stroke11.8"299.72 mm
Maximum Daylight30.3"769.62 mm
Mold Height Min5.9"149.86 mm
Mold Height Max18.5"469.9 mm
Ejector Force2.2 T1.996 t
Ejector Stroke2.76"70.104 mm
Main Breaker Electric Capacity23 kva
Heater Capacity4.8 kW4.8 kw
ControlCNC (V70)CNC (V70)
Dimensions13.2 x 4.0 x 5.2 Feet13.2 x 4.0 x 5.2 Feet
Weight3.5 US Ton3.5 US Ton
