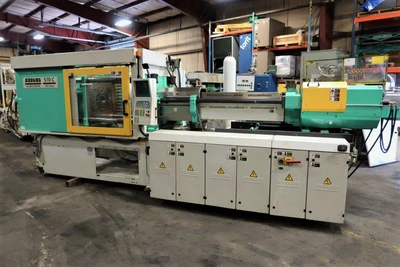

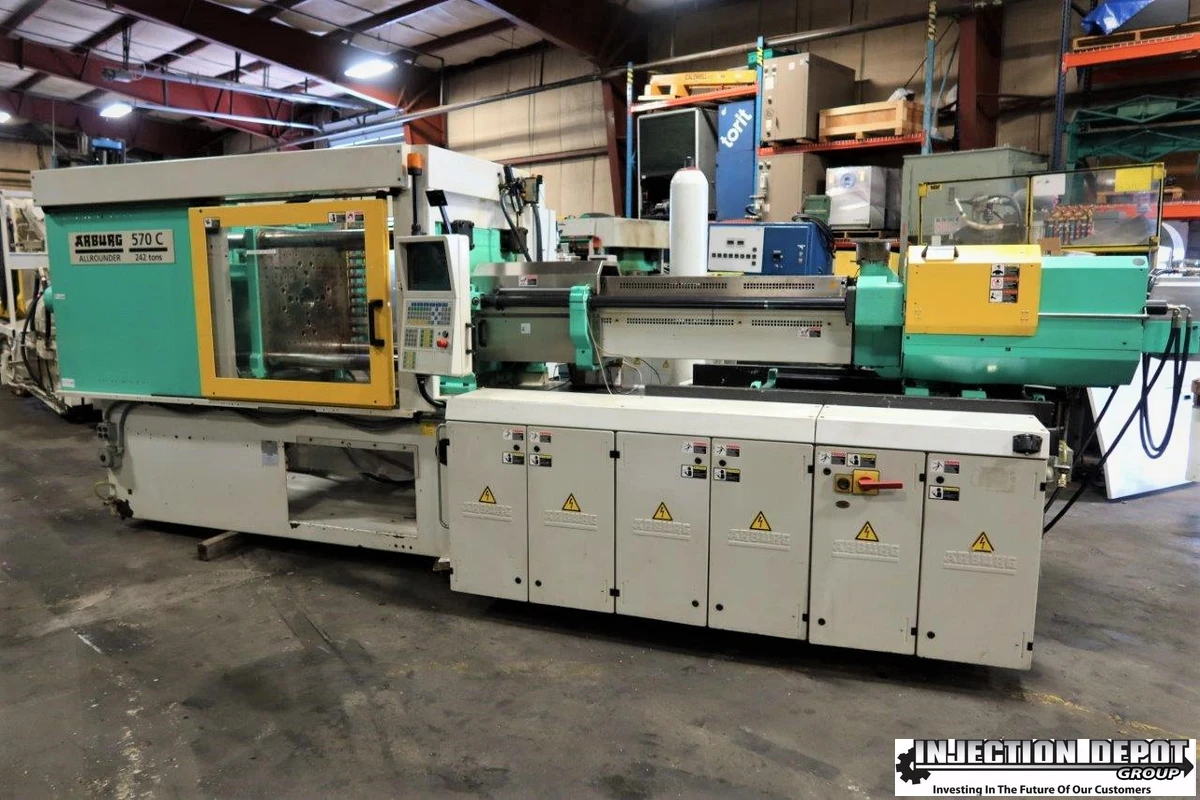

2007 570C 2200-1300 Arburg
HORIZONTAL INJECTION MOULDING MACHINESType | Servo Hydraulic |
Clamping Force Tonnage | 242 T |
Shot Volume (PS) | 21.4 oz |
Screw Diameter | 2.36" |
Tie Bar Distance H | 22.44" |
Tie Bar Distance V | 22.44" |
Platen Dimension H | 31.29" |
Platen Dimension V | 31.29" |
Clamp Stroke | 25.59" |
Maximum Daylight | 37.4" |
Mold Height Min | 11.81" |
Mold Height Max | 11.81" |
Ejector Stroke | 8.85" |
Power supply Volts | 460 |
Hours | 59,311 hr. |
Includes:
(1) Accumulator
(1) Conveyor
Key Features:
• Core Pull
• Air Blow
• Servo Drive
• High Speed Injection-Accumulator
