Used 2010 YUSHIN RA-1300SL | ROBOTS
Have one to sell?
ConditionUsed
1 available

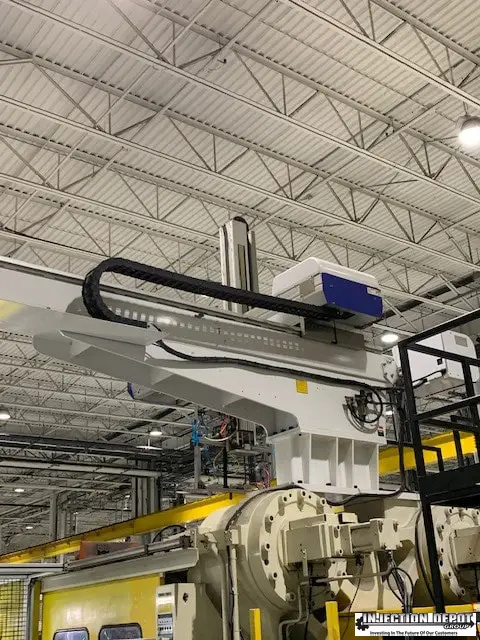

2010 RA-1300 Yushin Robot​
5Year: 2010
Model: RA-1300SL
Make: Yushin Robot
SPECIFICATIONS:
Power Supply: AC200V (50/60Hz)
Driving method: Digital Servo Motor (3/5 axis)
Control Method: Micro Computer Control
Air Pressure: 0.49MPa
Maximum Air Pressure: 0.79MPa
Wrist Flip Angle: 90 deg.
Maximum Power Consumption: Triple phase AC220V 9.1A (D type is12.1A)
Traverse Stroke (MM): 3500 standard
Vertical Stroke (MM): 1800 main arm
Kick Stroke (MM): 1570 main arm
Air Consumption Liter (Normal) / cycle: 51
Maximum payload (kg): Less than 35kg*
