Used 2004 TOSHIBA EC240V21-8Y | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

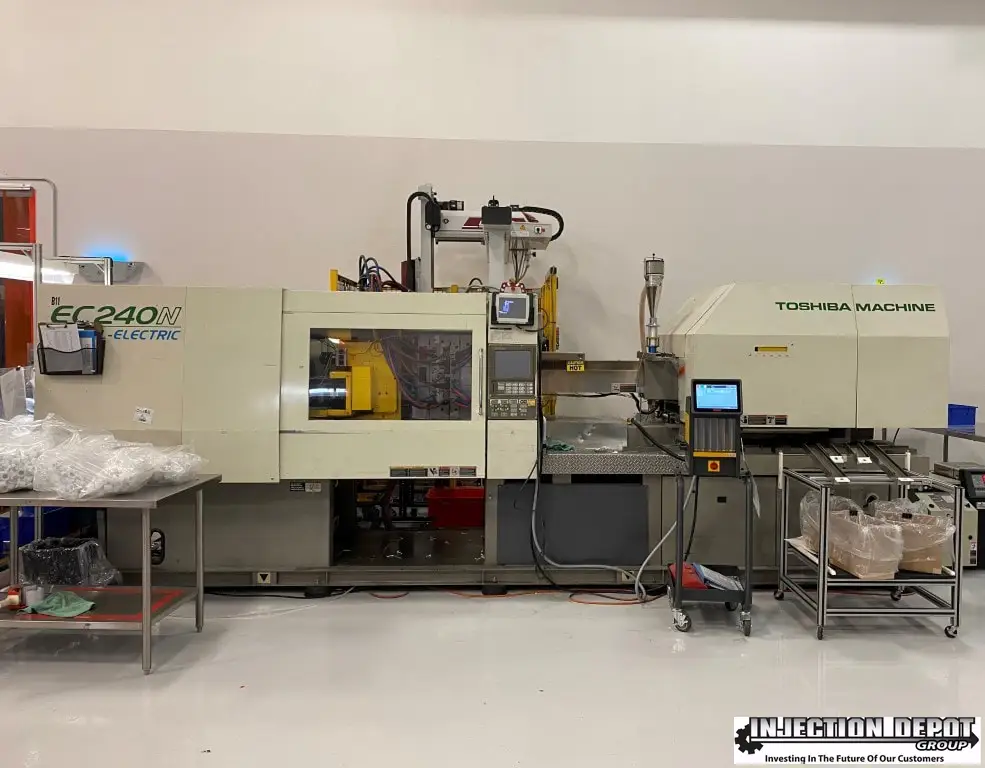

2004 Toshiba EC240V21-8Y
MODEL: EC240V21
TONNAGE: 240 TON
SHOT SIZE: 11.5 OZ
PLATEN DIMENSIONS: 34.2” X 32.2”
TIE BAR SPACING: 24" x 22"
CLAMP STROKE: 20.5"
MIN/MAX DAYLIGHT: 9.8"/22.4"
EQUIPPED WITH:
INJECTVISOR V21 CONTROL
Air Blow
UNDER POWER
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 240 T |
| Barrel Code | 8Y |
| Shot Volume (PS) | 11.5 oz |
| Tie Bar Distance H | 24" |
| Tie Bar Distance V | 22" |
| Platen Dimension H | 34.2" |
| Platen Dimension V | 32.2" |
| Clamp Stroke | 20.5" |
| Maximum Daylight | 22.4" |
| Injection Orientation | Horz |
| Machine under power | Under power running with mould |
| Control | CNC (Injectvisor V21) |
2004 Toshiba EC240V21-8Y
MODEL: EC240V21
TONNAGE: 240 TON
SHOT SIZE: 11.5 OZ
PLATEN DIMENSIONS: 34.2” X 32.2”
TIE BAR SPACING: 24" x 22"
CLAMP STROKE: 20.5"
MIN/MAX DAYLIGHT: 9.8"/22.4"
EQUIPPED WITH:
INJECTVISOR V21 CONTROL
Air Blow
UNDER POWER
