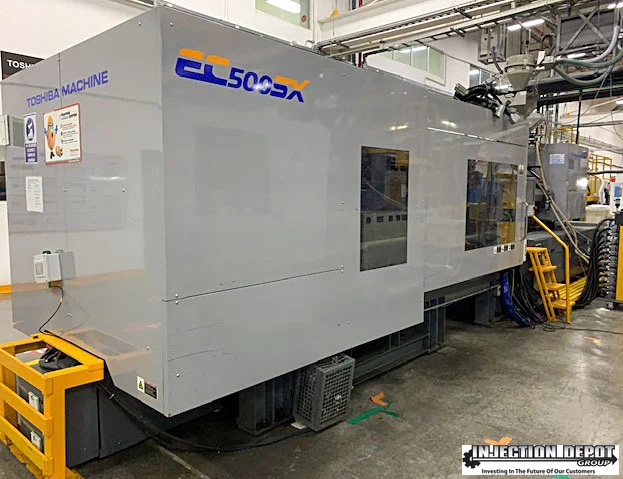

Used 2016 TOSHIBA EC500SX | HORIZONTAL INJECTION MOULDING MACHINES

Used Toshiba Model EC500SXV50-26AT,
All-Electric, horizontal injection molding machine per specs and features shown below. New in 2016.

Clamp tonnage…………………………………………………………500 US Tons
Distance between tie bars…………………………………………….34.3 x 31.9”
Platen size………………………………………………………………48.4 x 45.7”
Clamp stroke……………………………………………………………31.5”
Mold thickness – Min/Max………………………………..………….. .25.6”/43.3”
Max. daylight…………………………………………………………….74.8”
Shot size…………………………………………………………………43.5 oz.PS
Max. injection pressure…………………………………………………27,600 psi
Weight……………………………………………………………………. 24.9 US tons.
Dimensions………………………………………………………………. 335” x 81.89” x 87.6” LWH

Equipped with:
InjectvisorV50 enhanced Touch Screen control, External monitoring IF, Alarm Light Red, RJG Ready, Dual zone valve gate high flow, reject shot receptacle, Hopper Slide with linear guides, No Hopper,300 mm daylight extension, Dual High Flow air blow, Dual Hydraulic Core pull Power unit 20 GPM@2600psi, High Performance Polyolefin screw/ Tungsten Carbide Barrel, Transformer 460V,SPI Robot Interface, Hydraulic Ejection manifolds on stationary and moving platens,2 Piece Linear Bearing Kit for Stack Molds, UNDER POWER, Approx. hours machine 3300 hours !!!! Clean Room Facility!!
