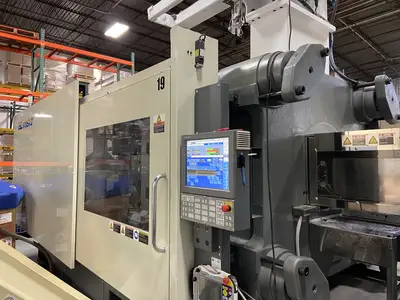

Used 2018 TOSHIBA EC610SXII | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
2018 EC610SXV50-36AT
MODEL: EC610SXV50-36AT
TONNAGE: 610 TON
SHOT SIZE: 61 OZ
PLATEN SIZE: 53.7" x 51.2"
TIE BAR SPACING: 37.8" x 35.4"
CLAMP STROKE: 35.4"
MIN/MAX MOLD HEIGHT: 15.7"/31.5"
MAX DAYLIGHT: 66.9"
CONTROL: V50
EQUIPPED WITH:
DUAL AIR BLOW
ROBOT INTERFACE
2018 Star SAII-1400-3 Servo Robot Included
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 610 T |
| Barrel Code | AT |
| Shot Volume (PS) | 61 oz |
| Tie Bar Distance H | 37.8" |
| Tie Bar Distance V | 35.4" |
| Platen Dimension H | 53.7" |
| Platen Dimension V | 51.2" |
| Clamp Stroke | 35.4" |
| Maximum Daylight | 66.9" |
| Mold Height Min | 15.7" |
| Mold Height Max | 31.5" |
| Injection Orientation | Horz |
| Control | CNC (V50) |
2018 EC610SXV50-36AT
MODEL: EC610SXV50-36AT
TONNAGE: 610 TON
SHOT SIZE: 61 OZ
PLATEN SIZE: 53.7" x 51.2"
TIE BAR SPACING: 37.8" x 35.4"
CLAMP STROKE: 35.4"
MIN/MAX MOLD HEIGHT: 15.7"/31.5"
MAX DAYLIGHT: 66.9"
CONTROL: V50
EQUIPPED WITH:
DUAL AIR BLOW
ROBOT INTERFACE
2018 Star SAII-1400-3 Servo Robot Included
