Used 2007 SUMITOMO SE450HD-1700 | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

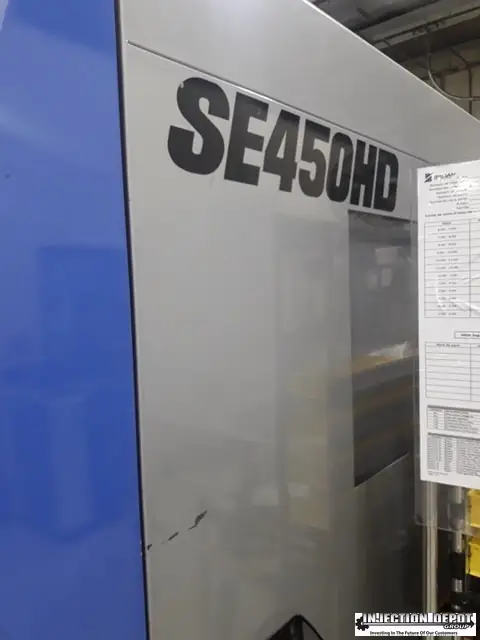

SUMITOMO MODEL SE450HD- 1700
All-Electric, horizontal injection molding machine per specs and features shown below. New in 2007.
Clamp tonnage…………………………………………………………500 US Tons
Distance between tie bars……………………………………………. 34.2 x 32.2”
Platen size………………………………………………………………. 50..7 x 47.24”
Clamp stroke……………………………………………………………31.5”
Mold thickness – Min/Max………………………………..………….. .21.6”/35.4”
Max. daylight…………………………………………………………….62.9.”
Shot size…………………………………………………………………33.4 oz.PS
EQUIPPED WITH:
AIR BLOW
(2) VALVE GATES
WIRED FOR CORE PULL
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 500 T |
| Shot Volume (PS) | 33.4 oz |
| Tie Bar Distance H | 34.2" |
| Tie Bar Distance V | 32.2" |
| Platen Dimension H | 50.7" |
| Platen Dimension V | 47.24" |
| Clamp Stroke | 31.5" |
| Maximum Daylight | 62.9" |
| Mold Height Min | 21.6" |
| Mold Height Max | 35.4" |
| Injection Orientation | Horz |
| Control | CNC |
SUMITOMO MODEL SE450HD- 1700
All-Electric, horizontal injection molding machine per specs and features shown below. New in 2007.
Clamp tonnage…………………………………………………………500 US Tons
Distance between tie bars……………………………………………. 34.2 x 32.2”
Platen size………………………………………………………………. 50..7 x 47.24”
Clamp stroke……………………………………………………………31.5”
Mold thickness – Min/Max………………………………..………….. .21.6”/35.4”
Max. daylight…………………………………………………………….62.9.”
Shot size…………………………………………………………………33.4 oz.PS
EQUIPPED WITH:
AIR BLOW
(2) VALVE GATES
WIRED FOR CORE PULL
