Used 2003 TOSHIBA ISG1450D-110A | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

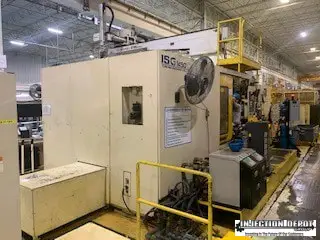

2003 1430 TON TOSHIBA ISG1450D-110A
MODEL: ISG1450D-110A
TONNAGE: 1430 TON
SHOT SIZE: 213 OZ
PLATEN SIZE: 74.8" x 72.8"
TIE BAR SPACING: 52.1" x 50.4"
CLAMP STROKE: 70.9"
MIN/MAX MOLD HEIGHT: 27.5"/47.2"
MAX DAYLIGHT: 98.4"
CONTROL: V21
CLAMP DIMESIONS: 20'L x 10'W x 8.8'H
CLAMP WEIGHT: 98,000 LBS
INJECTION UNIT DIMENSIONS: 15'L x 8'W x 8'H
INJECTION UNIT WEIGHT: 42,000 LBS
EJECTION STROKE: 9.8"
MATERIAL RAN: PP/ABS
EQUIPPED WITH:
DUAL CORE PULL
ROBOT INTERFACE
UNDER POWER
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 1,430 T |
| Shot Volume (PS) | 213 oz |
| Tie Bar Distance H | 52.1" |
| Tie Bar Distance V | 50.4" |
| Platen Dimension H | 74.8" |
| Platen Dimension V | 72.8" |
| Clamp Stroke | 70.9" |
| Maximum Daylight | 98.4" |
| Mold Height Min | 27.5" |
| Mold Height Max | 47.2" |
| Ejector Stroke | 9.8" |
| Injection Orientation | Horz |
| Machine under power | Under power running with mould |
| Control | CNC (V21) |
| Dimensions | 20'L x 10'W x 8.8'H / 15'L x 8'W x 8'H |
| Weight | 98000 / 42000 |
2003 1430 TON TOSHIBA ISG1450D-110A
MODEL: ISG1450D-110A
TONNAGE: 1430 TON
SHOT SIZE: 213 OZ
PLATEN SIZE: 74.8" x 72.8"
TIE BAR SPACING: 52.1" x 50.4"
CLAMP STROKE: 70.9"
MIN/MAX MOLD HEIGHT: 27.5"/47.2"
MAX DAYLIGHT: 98.4"
CONTROL: V21
CLAMP DIMESIONS: 20'L x 10'W x 8.8'H
CLAMP WEIGHT: 98,000 LBS
INJECTION UNIT DIMENSIONS: 15'L x 8'W x 8'H
INJECTION UNIT WEIGHT: 42,000 LBS
EJECTION STROKE: 9.8"
MATERIAL RAN: PP/ABS
EQUIPPED WITH:
DUAL CORE PULL
ROBOT INTERFACE
UNDER POWER
