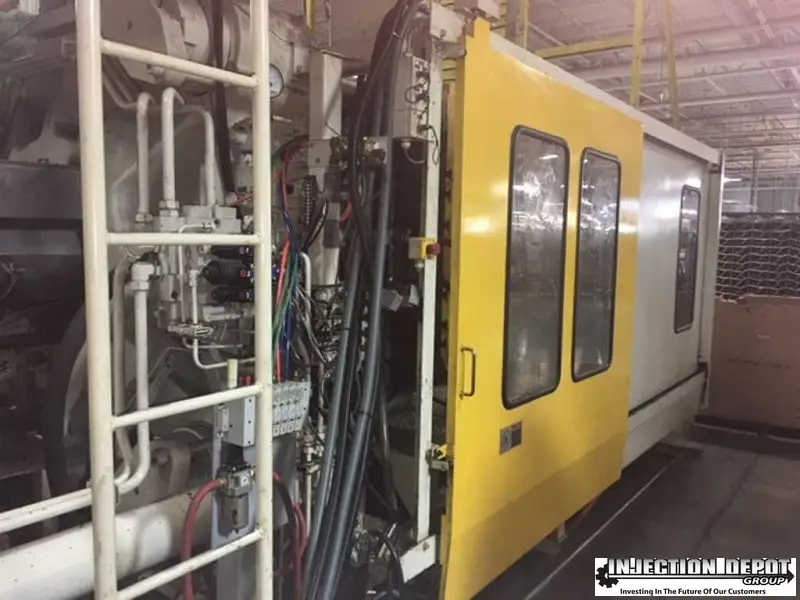

Used 1998 TOSHIBA ISGT 950WV10-81AM | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
1998 950WV10-81AM Ton Toshiba Machine
Manufacturer: Toshiba
Year: 1998
Model: ISGT 950WV10-81AM
Shot Size: 17.1 oz
Clamping Force: 950 US ton
Tie Bar Spacing: 49.8" x 49.8"
Controller: V-10
Injection Capacity: 142 oz.
Injection capacity up gradable to 186 oz.
Platen dimensions: 68.3" x 68.3"
Clamp stroke: 69.0"
Maximum daylight: 88.5"
Min/Max mold height: 19.7"/43.3"
Dimensions: 29.3" x 9.3" x 8.3"
Weight: 124,800 lbs.
Equipped with: T-slotted platens, (6) core pulls, (6) hyd valve gates, (1) pneumatic valve gate, 16 hot runner controllers circuits (software only), hydraulic knockouts, robot interface
Yushin robot included
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 950 T |
| Barrel Code | 81AM |
| Shot Volume (PS) | 17.1 oz |
| Plasticizing Capacity (PS) STD | 142 oz |
| Plasticizing Capacity (PS) High Torque | 186 oz |
| Tie Bar Distance H | 49.8" |
| Tie Bar Distance V | 49.8" |
| Platen Dimension H | 68.3" |
| Platen Dimension V | 68.3" |
| Clamp Stroke | 69" |
| Maximum Daylight | 88.5" |
| Mold Height Min | 19.7" |
| Mold Height Max | 43.3" |
| Injection Orientation | Horz |
| Control | CNC |
| Dimensions | 29.3 x 9.3 x 8.3 |
| Weight | 124800 lbs |
1998 950WV10-81AM Ton Toshiba Machine
Manufacturer: Toshiba
Year: 1998
Model: ISGT 950WV10-81AM
Shot Size: 17.1 oz
Clamping Force: 950 US ton
Tie Bar Spacing: 49.8" x 49.8"
Controller: V-10
Injection Capacity: 142 oz.
Injection capacity up gradable to 186 oz.
Platen dimensions: 68.3" x 68.3"
Clamp stroke: 69.0"
Maximum daylight: 88.5"
Min/Max mold height: 19.7"/43.3"
Dimensions: 29.3" x 9.3" x 8.3"
Weight: 124,800 lbs.
Equipped with: T-slotted platens, (6) core pulls, (6) hyd valve gates, (1) pneumatic valve gate, 16 hot runner controllers circuits (software only), hydraulic knockouts, robot interface
Yushin robot included
