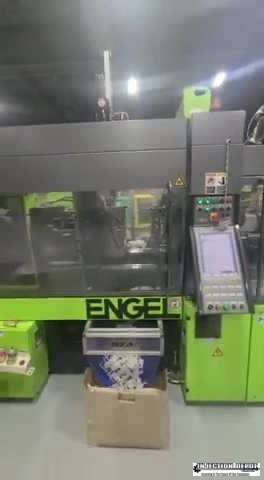

Used 2008 ENGEL EVC 440/240 | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
YEAR: 2008
MODEL: EVC 440/240
MAKE: Engel
SPECIFICATIONS:
Capacity: 240 tons
Max Daylight: 41.34”
Shot Size: 5.9 oz
Ejector Stroke: 7.09”
Platen Size: 34.65” x 32.64”
Opening Force: 10 Tons
Max Opening Stroke: 29.53”
Min Mold Height: 11.81”
CONTROL: CC200
EQUIPPED WITH:
Engel Robot Included Robot Interface Hydraulic Knockout
NOTE:
Under power
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 240 T |
| Shot Volume (PS) | 5.9 oz |
| Platen Dimension H | 34.65" |
| Platen Dimension V | 32.64" |
| Clamp Stroke | 29.53" |
| Maximum Daylight | 41.34" |
| Mold Height Min | 11.81" |
| Ejector Force | 10 T |
| Ejector Stroke | 7.09" |
| Injection Orientation | Horz |
| Machine under power | Under power running with mould |
| Control | CNC (CC200) |
YEAR: 2008
MODEL: EVC 440/240
MAKE: Engel
SPECIFICATIONS:
Capacity: 240 tons
Max Daylight: 41.34”
Shot Size: 5.9 oz
Ejector Stroke: 7.09”
Platen Size: 34.65” x 32.64”
Opening Force: 10 Tons
Max Opening Stroke: 29.53”
Min Mold Height: 11.81”
CONTROL: CC200
EQUIPPED WITH:
Engel Robot Included Robot Interface Hydraulic Knockout
NOTE:
Under power
