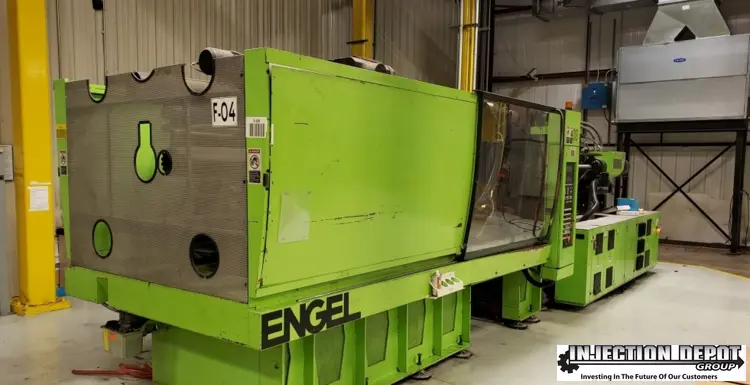

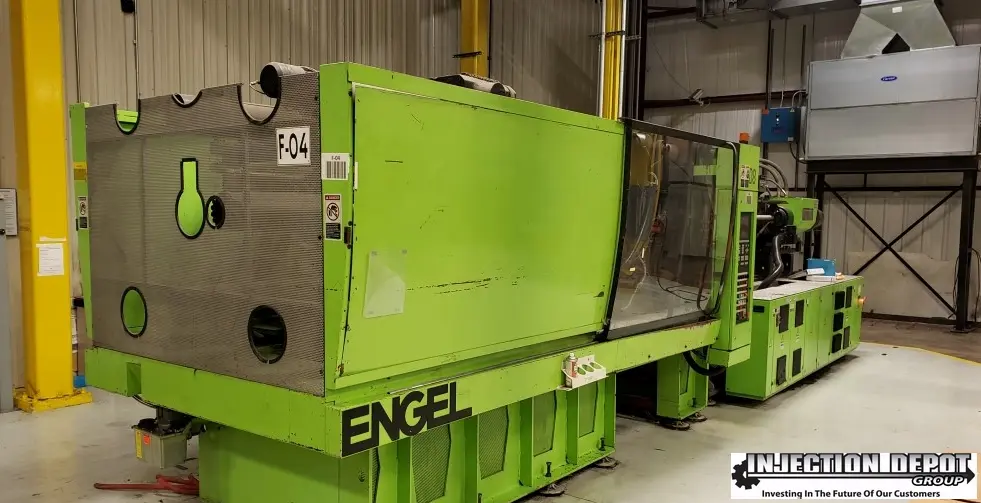

Used 2005 ENGEL CL 4550/610US | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
SPECIFICATIONS:
MODEL: CL 4550/610US
YEAR: 2005
MAKE: ENGEL
TONNAGE: 610 Ton
MOLD HEIGHT: 31.5”
DAYLIGHT (MIN-MAX): 65”
PLATEN SIZE: 53” x 50.4”
TIE BAR SPACING: 36” x 33.9”
HYDRAULIC EJECTOR STROKE: 9.8”
SHOT SIZE: 105 oz
CAPACITY: 610 Ton
CONTROL: CC100A03
INJECTION UNIT DIMENSIONS: 15’5” x 6’6” x 8’
INJECTION UNIT WEIGHT: 22,000 lbs
CLAMP UNIT DIMENSIONS: 15’3” x 8’2” x 8’8”
CLAMP UNIT WEIGHT: 44,000 lbs
EQUIPPED WITH:
Hydraulic knockout
