Used 1999 ENGEL ES14000/990 WP | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

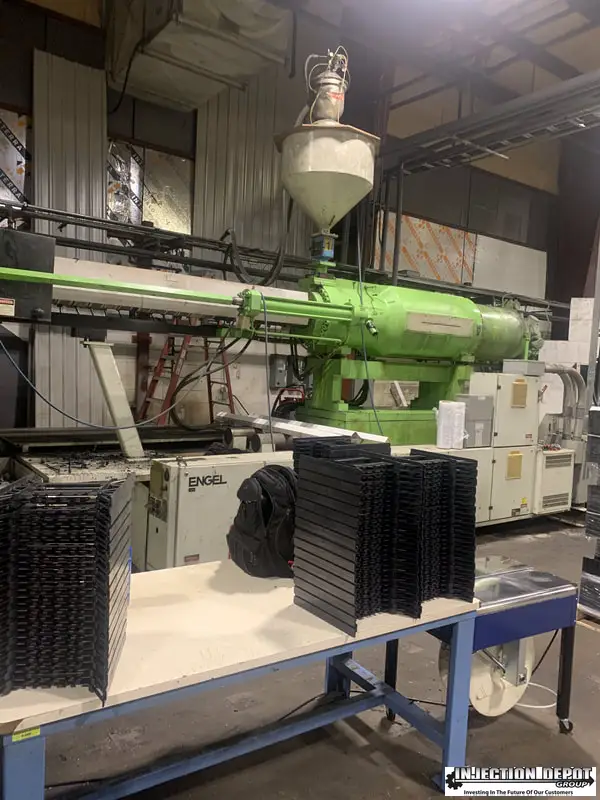

1999 990 WP Ton Engel Injection Molding Machine
Manufacturer: Engel
Model: ES14000/990 WP
Year: 1999
Specification: Year: 1999
Model: ES14000/990WP
Clam Force: 990
Clamp Opening Force: 106
Clamp Stroke Max: 39.37
Mold Height (min-max): 15.75 -39.37
Daylight (min0max): 15.75 x 78.74
Platen size (HxV): 83.23 x 71.85
Distance Between tie bars (HxV): 60.00 x 45.28
Tie Bar Diameter: 8.66
Hydraulic Ejector Stroke: 9.84
Hydraulic Ejector Force: 12.1
Control:
CC100
​Equipped with:
Core pull and air blow
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 990 T |
| Tie Bar Distance H | 60" |
| Tie Bar Distance V | 45.28" |
| Platen Dimension H | 83.23" |
| Platen Dimension V | 71.85" |
| Clamp Stroke | 39.37" |
| Maximum Daylight | 78.74" |
| Mold Height Min | 15.75" |
| Mold Height Max | 39.37" |
| Ejector Force | 12.1 T |
| Ejector Stroke | 9.84" |
| Injection Orientation | Horz |
| Control | CNC (CC100) |
1999 990 WP Ton Engel Injection Molding Machine
Manufacturer: Engel
Model: ES14000/990 WP
Year: 1999
Specification: Year: 1999
Model: ES14000/990WP
Clam Force: 990
Clamp Opening Force: 106
Clamp Stroke Max: 39.37
Mold Height (min-max): 15.75 -39.37
Daylight (min0max): 15.75 x 78.74
Platen size (HxV): 83.23 x 71.85
Distance Between tie bars (HxV): 60.00 x 45.28
Tie Bar Diameter: 8.66
Hydraulic Ejector Stroke: 9.84
Hydraulic Ejector Force: 12.1
Control:
CC100
​Equipped with:
Core pull and air blow
