Used 1998 ENGEL ES2050/500 | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

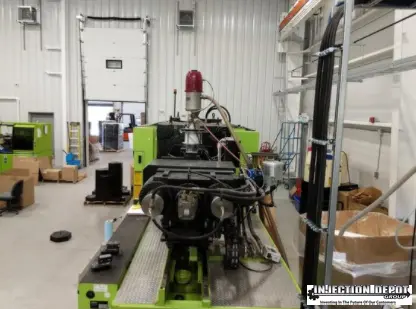

1998 500-Ton Engel
MODEL: ES2050/500
YEAR: 1998
MAKE: ENGEL
TONNAGE: 500 TON
MOLD HEIGHT (MIN-MAX): 11.81-33.94"
DAYLIGHT (MIN-MAX): 11.81-61.50"
PLATEN SIZE: 47.80X47.24"
TIE BAR DIAMETER: 5.51"
HYDRAULIC EJECTOR STROKE: 9.45"
HYDRAULIC EJECTOR FORCE: 8.9 TONS
SCREW DIAMETER: 70 MM
SHOT SIZE: 36 OZ
INJECTION CAPACITY: 70.5"
RECOVERY RATE: 3.2 SEC
PLASTICIZING CAPACITY: 728 LBS/HR
INJECTION RATE AT MAX: 22.4 SEC
INJECTION VELOCITY AT MAX: 3.8/SEC
SCREW STROKE: 11.81"
INJECTION PRESSURE AT MAX: 25810 PSI
SCREW SPEED MAX: 262 RPM
SCREW TORQUE: 1305 FT-LBS
SCREW L/D RATIO: 20:1
NOZZLE STROKE: 25.59"
NOZZLE FORCE: 12.4"
HOURS:1020888
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 500 T |
| Barrel Code | A |
| Shot Volume (PS) | 36 oz |
| Screw Diameter | 2.75" |
| Maximum Injection Pressure | 25810 psi |
| Screw Speed STD | 262 rpm |
| Platen Dimension H | 47.8" |
| Platen Dimension V | 47.24" |
| Maximum Daylight | 61.5" |
| Mold Height Min | 11.81" |
| Mold Height Max | 33.94" |
| Ejector Force | 8.9 T |
| Ejector Stroke | 9.45" |
| Injection Orientation | Horz |
| Hours | 1,020,890 hr. |
| Control | CNC |
1998 500-Ton Engel
MODEL: ES2050/500
YEAR: 1998
MAKE: ENGEL
TONNAGE: 500 TON
MOLD HEIGHT (MIN-MAX): 11.81-33.94"
DAYLIGHT (MIN-MAX): 11.81-61.50"
PLATEN SIZE: 47.80X47.24"
TIE BAR DIAMETER: 5.51"
HYDRAULIC EJECTOR STROKE: 9.45"
HYDRAULIC EJECTOR FORCE: 8.9 TONS
SCREW DIAMETER: 70 MM
SHOT SIZE: 36 OZ
INJECTION CAPACITY: 70.5"
RECOVERY RATE: 3.2 SEC
PLASTICIZING CAPACITY: 728 LBS/HR
INJECTION RATE AT MAX: 22.4 SEC
INJECTION VELOCITY AT MAX: 3.8/SEC
SCREW STROKE: 11.81"
INJECTION PRESSURE AT MAX: 25810 PSI
SCREW SPEED MAX: 262 RPM
SCREW TORQUE: 1305 FT-LBS
SCREW L/D RATIO: 20:1
NOZZLE STROKE: 25.59"
NOZZLE FORCE: 12.4"
HOURS:1020888
